> EATON - MOELLER > 123882

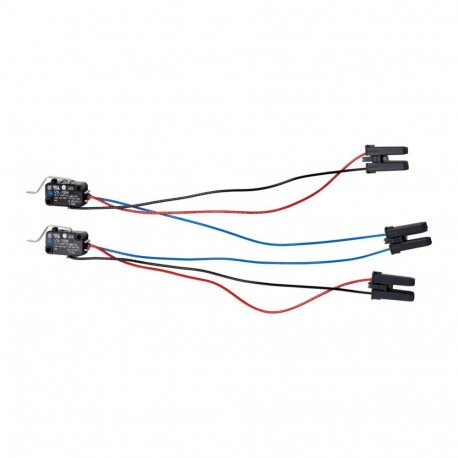

EATON - MOELLER +IZMX-AS44 +IZMX-AS44 123882 EATON ELECTRIC Signalling switch ON-OFF, 4W View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-AS44 123882 EATON ELECTRIC Signalling switch ON-OFF, 4W

+IZMX-AS44

123882

EATON - MOELLER

1 Pcs.

Signalling switch ON-OFF, 4W Standard auxiliary switch, for ON/OFF annunciation

Automation > Auxiliary contact block

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Signalling switch ON-OFF, 4W
Standard auxiliary switch, for ON/OFF annunciation
[

Delivery program

Product range
Accessories
Accessories
Auxiliary contact
Accessories
Standard auxiliary switch for On-Off signaling
Standard auxiliary switch for On-Off signaling.
The basic device already contains two changeover contacts.
Two additional changeover contacts possible.
For use with
IZMX40...
INX40...
4 changeover contacts
,

Technical data

Rated breaking capacity
Inductive load250 V AC
10 A
Inductive load125 V DC
0.5 A
Inductive load250 V DC
0.25 A
,

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
,

Technical data ETIM 6.0

Low-voltage industrial components (EG000017) / Auxiliary contact block (EC000041)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Auxiliary switch block ([email protected] [AKN342010])
Number of contacts as change-over contact
4
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
0
Rated operation current Ie at AC-15, 230 V
10 A
Type of electric connection
Flat plug-in connection
Model
Half-integrated
Mounting method
Other
]

ETIM for 123882 Low-voltage industrial controls and switchgear (EC000041)
Feature Name Feature Value
Number of contacts as change-over contact (EF008257) 4
Number of contacts as normally open contact (EF008256) 0
Number of contacts as normally closed contact (EF008255) 0
Number of fault-signal switches (EF007613) 0
Rated operation current Ie at AC-15, 230 V (EF001385) 10 A
Type of electric connection (EF003961) Flat plug-in connection
Model (EF000010) Integrable
Mounting method (EF000003) Other
Lamp holder (EF000048) None
