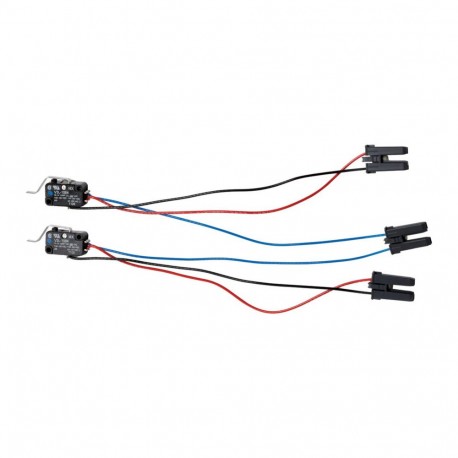

EATON - MOELLER +IZMX-AS1010 +IZMX-AS1010 124346 EATON ELECTRIC Signalling switch ON-OFF, 10W View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-AS1010 124346 EATON ELECTRIC Signalling switch ON-OFF, 10W

+IZMX-AS1010

124346

EATON - MOELLER

1 Pcs.

Signalling switch ON-OFF, 10W Standard auxiliary switch, for ON/OFF annunciation

Automation > Auxiliary contact block

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller ON-OFF signaling switch provides multiple integrated contacts for heavy-duty air circuit breakers to report main power state transitions to control room instrumentation. It maintains dependable electrical switching performance under continuous industrial usage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 10
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of fault-signal switches (EF007613): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 10 A
  • Type of electric connection (EF003961): Flat plug-in connection
  • Model (EF000010): Integrable

More info

▲
Signalling switch ON-OFF, 10W
Standard auxiliary switch, for ON/OFF annunciation
[

Delivery program

Product range
Accessories
Accessories
Auxiliary contact
Accessories
Standard auxiliary switch for On-Off signaling
Standard auxiliary switch for On-Off signaling.
The basic device already contains two changeover contacts.
Two additional changeover contacts possible.
For use with
IZMX40...
INX40...
10 changeover contacts
,

Technical data

Rated breaking capacity
Inductive load250 V AC
10 A
Inductive load125 V DC
0.5 A
Inductive load250 V DC
0.25 A
,

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
,

Technical data ETIM 6.0

Low-voltage industrial components (EG000017) / Auxiliary contact block (EC000041)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Auxiliary switch block ([email protected] [AKN342010])
Number of contacts as change-over contact
10
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
0
Rated operation current Ie at AC-15, 230 V
10 A
Type of electric connection
Flat plug-in connection
Model
Half-integrated
Mounting method
Other
]
