View larger
Images are for illustrative purposes only. Please refer to data sheet for details

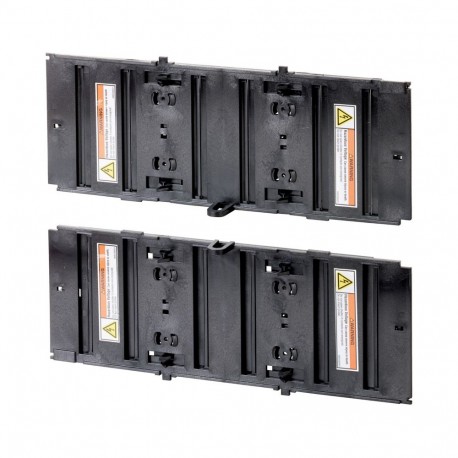

+IZMX-SH403 122905 EATON ELECTRIC Shutter for withdrawable unit IZMX403
+IZMX-SH403
122905
EATON - MOELLER
1 Pcs.
Shutter for withdrawable unit IZMX403
Protective shroud, hides the live main connections in the cassette
Automation > Chassis part power circuit breaker
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Shutter for withdrawable unit IZMX403
Protective shroud, hides the live main connections in the cassette
Delivery program
Product range
Accessories
Accessories
Withdrawable units
Accessories
Shutter
When the breaker is withdrawn from its connected position, the shutters automatically cover the cassette’s live main terminals.
Pole
3
For use with
IZMX-CAS403…
for withdrawable unit
Design verification as per IEC/EN 61439
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Chassis part power circuit breaker (EC002043)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Chassis part circuit breaker ([email protected] [ACN955011])
Rated current In
4000 A
Number of poles
3
Version as busbar adapter
No
Version as built-in device
Yes
Type of electrical connection of main circuit
Other
| Feature Name | Feature Value |
|---|---|
| Rated current In (EF008250) | 4000 A |
| Number of poles (EF001391) | 3 |
| Version as busbar adapter (EF006965) | No |
| Version as built-in device (EF006954) | Yes |
| Type of electrical connection of main circuit (EF006819) | Other |
