EATON - MOELLER +IZMX-SH164 +IZMX-SH164 101543 EATON ELECTRIC Shutter for withdrawable unit IZMX164 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-SH164 101543 EATON ELECTRIC Shutter for withdrawable unit IZMX164

+IZMX-SH164

101543

EATON - MOELLER

1 Pcs.

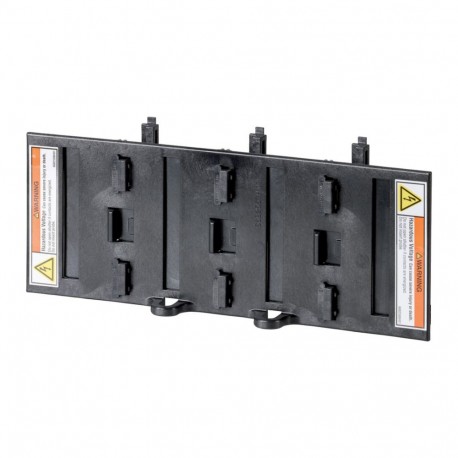

Shutter for withdrawable unit IZMX164 Protective shroud, hides the live main connections in the cassette

Automation > Chassis part power circuit breaker

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller +IZMX-SH164 101543 EATON ELECTRIC Shutter for withdrawable unit IZMX164 serves as a crucial safety accessory inside drawout circuit breaker compartments, automatically covering live contacts when the breaker is racked out. This mechanical barrier protects personnel from accidental contact with energized busbar openings during maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current In (EF008250): 1600 A
  • Number of poles (EF001391): 4
  • Version as busbar adapter (EF006965): No
  • Version as built-in device (EF006954): Yes

More info

▲
Shutter for withdrawable unit IZMX164
Protective shroud, hides the live main connections in the cassette
[

Delivery program

Product range
Accessories
Accessories
Withdrawable units
Accessories
Shutter
When the breaker is withdrawn from its connected position, the shutters automatically cover the cassette’s live main terminals.
Pole
4
For use with
IZMX-CAS164…
for withdrawable unit
,

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
,

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Chassis part power circuit breaker (EC002043)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Chassis part circuit breaker ([email protected] [ACN955011])
Rated current In
1600 A
Number of poles
4
Version as busbar adapter
No
Version as built-in device
Yes
Type of electrical connection of main circuit
Other
]

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
