EATON - MOELLER +IZMX-SH163 +IZMX-SH163 101541 EATON ELECTRIC Shutter for withdrawable unit IZMX163 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-SH163 101541 EATON ELECTRIC Shutter for withdrawable unit IZMX163

+IZMX-SH163

101541

EATON - MOELLER

1 Pcs.

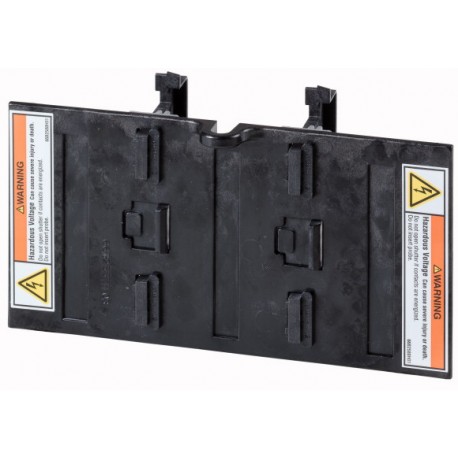

Shutter for withdrawable unit IZMX163 Protective shroud, hides the live main connections in the cassette

Automation > Chassis part power circuit breaker

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

+IZMX-SH163 101541 EATON ELECTRIC Shutter for withdrawable unit IZMX163 is a safety shutter assembly designed for drawout circuit breakers to automatically block access to live contacts when the breaker frame is removed. These mechanical barriers prevent accidental electrical contact during maintenance inside industrial switchboard panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current In (EF008250): 1600 A
  • Number of poles (EF001391): 3
  • Version as busbar adapter (EF006965): false
  • Version as built-in device (EF006954): true

More info

▲
Shutter for withdrawable unit IZMX163
Protective shroud, hides the live main connections in the cassette
[

Delivery program

Product range
Accessories
Accessories
Withdrawable units
Accessories
Shutter
When the breaker is withdrawn from its connected position, the shutters automatically cover the cassette’s live main terminals.
Pole
3
For use with
IZMX-CAS163…
for withdrawable unit
,

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
,

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Chassis part power circuit breaker (EC002043)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Chassis part circuit breaker ([email protected] [ACN955011])
Rated current In
1600 A
Number of poles
3
Version as busbar adapter
No
Version as built-in device
Yes
Type of electrical connection of main circuit
Other
]

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
