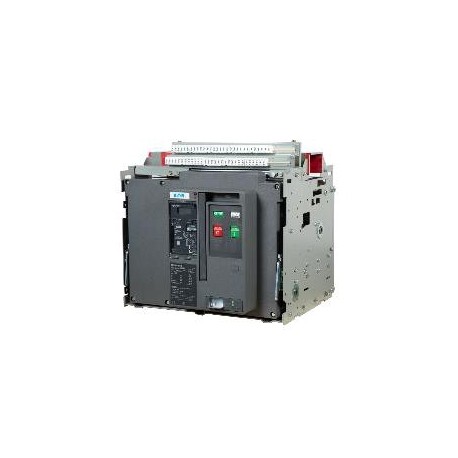

EATON - MOELLER +IZM-ST24DC +IZM-ST24DC 122736 IZM-ST24DC EATON ELECTRIC Shunt release, 24VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZM-ST24DC 122736 IZM-ST24DC EATON ELECTRIC Shunt release, 24VDC

+IZM-ST24DC

122736

IZM-ST24DC

EATON - MOELLER

1 Pcs.

Shunt release, 24VDC Shunt release, Voltage release, For use with: IZM20, 32, 40, 63…, IN20, 32,40, 63…, If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required. Terminal assignment page 71

Automation > Shunt release (for power circuit breaker)
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Shunt release, 24VDC
Eaton Catalog No.
IZM-ST24DC
Shunt release, Voltage release, For use with: IZM20, 32, 40, 63…, IN20, 32,40, 63…, If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required. Terminal assignment page 71
[

Delivery program

Accessories
Voltage release
Accessories
First shunt release
For use with
IZM20, 32, 40, 63…
IN20, 32,40, 63…
Instructions
If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required. Terminal assignment page 71
,

Technical data

Rated control voltage [Us]
DC [Us]
24 V
Power consumption
DC
(pick-up 250) W
Circuit-breaker response time at Us
35 ms
Operating range
Pick-up voltage [Pick-up]
According to the IEC standard x Uc
,

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
]

ETIM for 122736 Low-voltage industrial controls and switchgear (EC001023)
Feature Name Feature Value
Rated control supply voltage AC 50 Hz (EF003978) None V
Rated control supply voltage AC 60 Hz (EF003979) None V
Rated control supply voltage DC (EF003980) None V
Voltage type for actuating (EF008242)
Initial value of the undelayed short-circuit release - setting range (EF008187) None A
End value adjustment range undelayed short-circuit release (EF008188) None A
Power consumption (EF000346) None W
Type of electric connection (EF003961)
Number of contacts as normally open contact (EF008256)
Number of contacts as normally closed contact (EF008255)
Number of contacts as change-over contact (EF008257)
Suitable for power circuit breaker (EF005863) false
Suitable for off-load switch (EF001543) false
Suitable for motor safety switch (EF005826) false
Suitable for overload relay (EF001545) false

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
