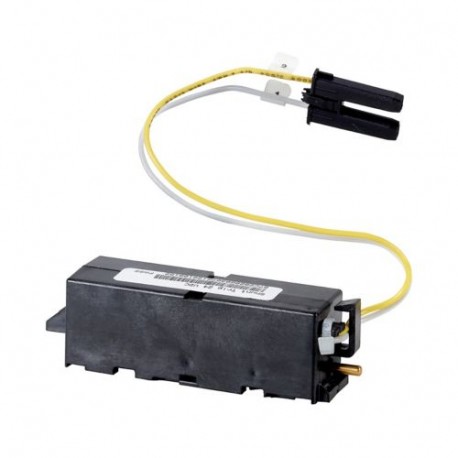

EATON - MOELLER +IZMX-STS60DC +IZMX-STS60DC 124059 EATON ELECTRIC Shunt release (for power circuit breaker) (2) 60VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-STS60DC 124059 EATON ELECTRIC Shunt release (for power circuit breaker) (2) 60VDC

+IZMX-STS60DC

124059

EATON - MOELLER

1 Pcs.

Shunt release (for power circuit breaker);(2) 60VDC Suitable for remote switching off, cannot be combined with an undervoltage release

Automation > Shunt release (for power circuit breaker)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing dependable remote tripping functionality, the +IZMX-STS60DC 124059 EATON ELECTRIC Shunt release (for power circuit breaker) (2) 60VDC connects to switchgear to open circuit breakers upon receiving an electrical trigger signal. Such devices are essential components in safety circuits, enabling automated or manual remote disconnection of power during plant emergencies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage AC 50 Hz (EF003978): 0 V
  • Rated control supply voltage AC 60 Hz (EF003979): 0 V
  • Rated control supply voltage DC (EF003980): 60 V
  • Voltage type for actuating (EF008242): DC
  • Power consumption (EF000346): 5 W
  • Type of electric connection (EF003961): Flat plug-in connection
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as change-over contact (EF008257): 0
  • Suitable for power circuit breaker (EF005863): Yes
  • Suitable for off-load switch (EF001543): Yes
  • Suitable for motor safety switch (EF005826): No
  • Suitable for overload relay (EF001545): No

More info

▲

General specifications

Product Name
Eaton Moeller series IZMX/INX shunt release
Catalog Number
124059
Model Code
+IZMX-STS60DC
EAN
4015081216642
Product Length/Depth
150 mm
Product Height
100 mm
Product Width
100 mm
Product Weight
0.113 kg
Compliances
CE Marked
RoHS conform

Delivery program

Type
Accessory
Accessory/spare part type
Remote switching

Technical data - electrical

Voltage type
DC
Control voltage operating range
60 V DC
0.7 - 1.1 x Us
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
60 V
Rated control supply voltage (Us) at DC - max
60 V
Current rating - max
0.07 A (maximum holding current)
Rated operational current
0.07 A (maximum holding current)
Adjustment range undelayed short-circuit release (end value) - max
0 A
Power consumption
5 VA/W AC/DC
Pick-up power consumption at 35 ms - max
540 VA/W
Circuit breaker total switching time
22 ms (Us = 100%)
Initial value of the undelayed short-circuit release - min
0 A

Technical data - mechanical

Number of actuation per minute - max
3
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
0

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Additional information

Special features
Suitable for
Power circuit breaker
Off-load switch
Used with
IZMX16..., IZMX40...
INX16..., INX40...
