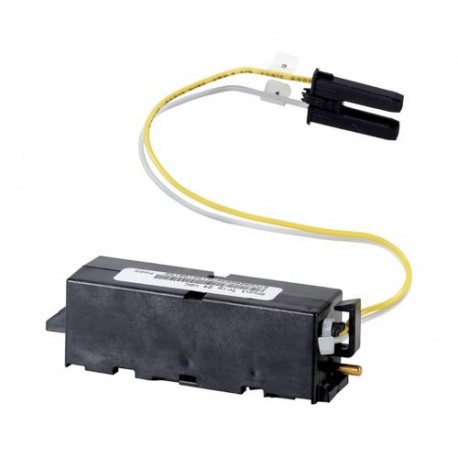

EATON - MOELLER +IZMX-STS24DC +IZMX-STS24DC 123731 EATON ELECTRIC Shunt release (for power circuit breaker) (2) 24VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-STS24DC 123731 EATON ELECTRIC Shunt release (for power circuit breaker) (2) 24VDC

+IZMX-STS24DC

123731

EATON - MOELLER

1 Pcs.

Shunt release (for power circuit breaker);(2) 24VDC Suitable for remote switching off, cannot be combined with an undervoltage release

Automation > Shunt release (for power circuit breaker)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller shunt release (for power circuit breaker) (+IZMX-STS24DC) provides automated remote tripping capabilities for circuit protection assemblies in commercial and industrial electrical distributions. Units of this type integrate directly into protective switchgear to facilitate rapid breaker opening upon receiving an external electrical control signal. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage AC 50 Hz (EF003978): 0 V
  • Rated control supply voltage AC 60 Hz (EF003979): 0 V
  • Rated control supply voltage DC (EF003980): 24 V
  • Voltage type for actuating (EF008242): DC
  • Power consumption (EF000346): 5 W
  • Type of electric connection (EF003961): Flat plug-in connection
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as change-over contact (EF008257): 0
  • Suitable for power circuit breaker (EF005863): Yes
  • Suitable for off-load switch (EF001543): Yes
  • Suitable for motor safety switch (EF005826): No
  • Suitable for overload relay (EF001545): No

More info

▲

General specifications

Product Name
Eaton Moeller series IZMX/INX shunt release
Catalog Number
123731
Model Code
+IZMX-STS24DC
EAN
4015081213368
Product Length/Depth
150 mm
Product Height
100 mm
Product Width
100 mm
Product Weight
0.113 kg
Compliances
RoHS conform

Delivery program

Type
Accessory
Accessory/spare part type
Remote switching

Technical data - electrical

Voltage type
DC
Control voltage operating range
0.7 - 1.1 x Us
24 V DC
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
24 V
Rated control supply voltage (Us) at DC - max
24 V
Current rating - max
0.18 A (maximum holding current)
Rated operational current
0.18 A (maximum holding current)
Adjustment range undelayed short-circuit release (end value) - max
0 A
Power consumption
5 VA/W AC/DC
Pick-up power consumption at 35 ms - max
500 VA/W
Circuit breaker total switching time
22 ms (Us = 100%)
Initial value of the undelayed short-circuit release - min
0 A

Technical data - mechanical

Number of actuation per minute - max
3
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
0

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Additional information

Special features
Suitable for
Off-load switch
Power circuit breaker
Used with
INX16..., INX40...
IZMX16..., IZMX40...

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
