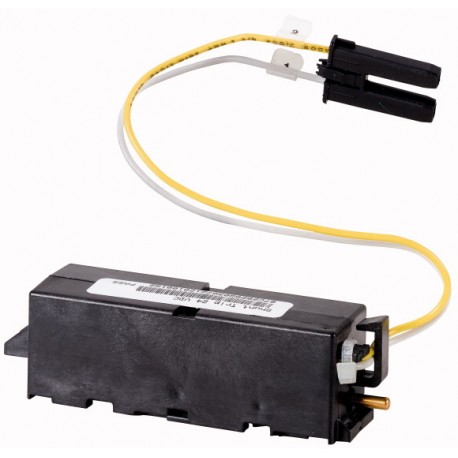

EATON - MOELLER +IZMX-STS110AD +IZMX-STS110AD 123733 EATON ELECTRIC Shunt release (for power circuit breaker) (2) 110-125VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-STS110AD 123733 EATON ELECTRIC Shunt release (for power circuit breaker) (2) 110-125VAC/DC

+IZMX-STS110AD

123733

EATON - MOELLER

1 Pcs.

Shunt release (for power circuit breaker);(2) 110-125VAC/DC Suitable for remote switching off, cannot be combined with an undervoltage release

Automation > Shunt release (for power circuit breaker)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The +IZMX-STS110AD 123733 EATON ELECTRIC Shunt release is an internal control component engineered to unlatch and open power circuit breakers from a remote location. Such releases are essential building blocks in electrical safety systems, allowing emergency stop commands to interrupt high-voltage paths instantly. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage AC 50 Hz (EF003978): 110 V
  • Rated control supply voltage AC 60 Hz (EF003979): 110 V
  • Rated control supply voltage DC (EF003980): 110 V
  • Voltage type for actuating (EF008242): AC/DC
  • Power consumption (EF000346): 10 W
  • Type of electric connection (EF003961): Flat plug-in connection
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as change-over contact (EF008257): 0
  • Suitable for power circuit breaker (EF005863): Yes
  • Suitable for off-load switch (EF001543): Yes
  • Suitable for motor safety switch (EF005826): No
  • Suitable for overload relay (EF001545): No

More info

▲
Shunt release (for power circuit breaker);(2) 110-125VAC/DC
Suitable for remote switching off, cannot be combined with an undervoltage release
[

Delivery program

Product range
Accessories
Accessories
Remote switching
Accessories
2nd shunt release
Cannot be combined with an undervoltage release.
Maximum operating frequency [Actuations/minute]
3
Limited to 3/min due to the high pick-up current for 35 ms.
Please note - the circuit-breaker's switching frequency = 60/h
Rated control voltage [Us]
110 - 127 V AC 50/60 Hz
110 - 125 V DC V
Operating range [x US]
0,7 - 1,1 Factor
max. holding current [In]
0.071 A
max. pick-up current (35ms) [In]
5.54 A
max. continuous power [AC/DC]
10 VA/W
max. pull-in power (35ms) [AC/DC]
540 VA/W
Circuit-breaker total switching time [@ US=100%]
22 ms
For use with
IZMX16..., IZMX40...
INX16..., INX40...
Notes

Suitable for continuous commands (100% DF)

,

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
,

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Shunt release (for power circuit breaker) (EC001023)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Full load current trip ([email protected] [AKF016013])
Rated control supply voltage Us at AC 50HZ
110 - 127 V
Rated control supply voltage Us at AC 60HZ
110 - 127 V
Rated control supply voltage Us at DC
110 - 125 V
Voltage type for actuating
AC/DC
Initial value of the undelayed short-circuit release - setting range
0 A
End value adjustment range undelayed short-circuit release
0 A
Type of electric connection
Flat plug-in connection
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Suitable for power circuit breaker
Yes
Suitable for off-load switch
Yes
Suitable for motor safety switch
No
Suitable for overload relay
No
]
