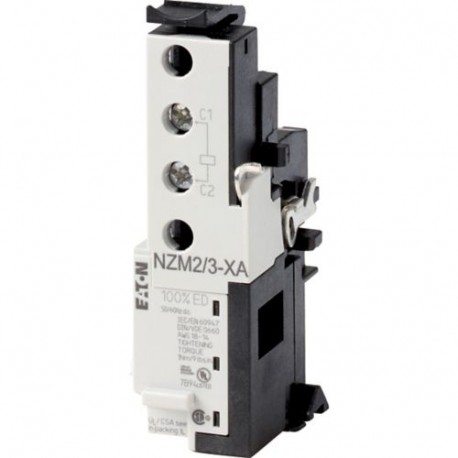

NZM2/3-XA12AC/DC 259752 Y7-259752 EATON ELECTRIC Shunt release, 12VAC/DC
NZM2/3-XA12AC/DC
259752
Y7-259752
EATON - MOELLER
1 Pcs.
Automation > Shunt release (for power circuit breaker)
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The NZM2/3-XA12AC/DC 259752 Y7-259752 EATON ELECTRIC Shunt release, 12VAC/DC is an auxiliary accessory designed for molded case circuit breakers to enable remote tripping capabilities. Shunt releases allow operators to trigger circuit breaker openings from external control stations during emergency stop procedures or safety interlock events. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Eaton Moeller
- Manufacturer part number: NZM2/3-XA12AC/DC
- Catalogue code: 259752
- Catalogue title: NZM2/3-XA12AC/DC 259752 Y7-259752 EATON ELECTRIC Shunt release, 12VAC/DC
- Product description: General specifications Product Name Eaton Moeller series NZM release Catalog Number 259752 Model Code NZM2/3-XA12AC/DC EAN 4015082597528 Product Length/Depth 42 mm Product Height 90 mm Product Width 30 mm Product Weight
- Manufacturer summary: Shunt release, 12VAC/DC NZM2/3-XA12AC/DC Eaton Moeller series NZM - Molded Case Circuit Breaker. Shunt release, 12VAC/DC, 2/3
More info
▲General specifications
IEC
RoHS conform
CSA (File No. 22086)
IEC60947
UL (File No. E140305)
UL listed
UL489
UL (Category Control Number DIHS)
CSA-C22.2 No. 5-09
CE marking
CSA certified
Product specifications
- Switches are tripped by a voltage pulse or by the application of uninterrupted voltage.
- If the shunt trip is live, contact with the circuit breaker’s primary contacts is prevented when switched on.
- Shunt releases cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XU... undervoltage release.
NZM3(-4), N(S)3(-4)
0.75 mm² - 2.5 mm² (1x) for undervoltage releases, off-delayed with ferrule
18 - 14 AWG (1x) at shunt release
0.75 mm² - 2.5 mm² (1x) at shunt release with ferrule
18 - 14 AWG (2x) for undervoltage releases, off-delayed
0.75 mm² - 2.5 mm² (2x) for undervoltage releases, off-delayed with ferrule
18 - 14 AWG (1x) for undervoltage releases, off-delayed
18 - 14 AWG (2x) at shunt release
12 V DC
