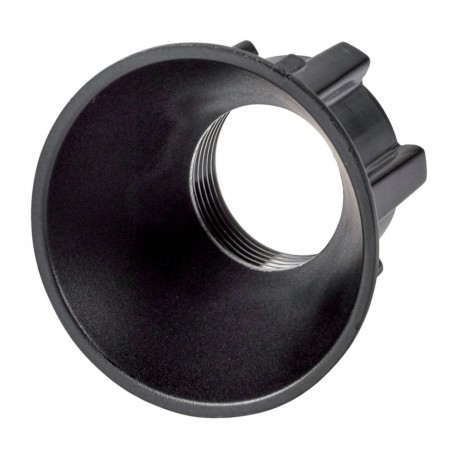

SFGAB 191848 Y7-191848 EATON ELECTRIC Guide cone, 320-mm shaft
SFGAB
191848
Y7-191848
EATON - MOELLER
10 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller SFGAB 191848 Y7-191848 EATON ELECTRIC Guide cone, 320-mm shaft is a mechanical alignment accessory designed to facilitate the smooth insertion and guidance of withdrawable switchgear components. Guide elements ensure proper alignment during racking operations in modular power distribution units.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product Name: Eaton Moeller® series R9 Accessory Guide cone
- Catalog Number: 191848
- Model Code: SFGAB
- EAN: 4015081923694
- Product Length/Depth: 44 mm
- Product Height: 35 mm
- Product Width: 44 mm
- Product Weight: 0.012 kg
- Compliances: CE
- Type: Guide cone
- 10.10 Temperature rise: Not applicable.
- 10.11 Short-circuit rating: Not applicable.
- 10.12 Electromagnetic compatibility: Not applicable.
- 10.13 Mechanical function: Not applicable.
- 10.2.2 Corrosion resistance: Meets the product standard's requirements.
- 10.2.3.1 Verification of thermal stability of enclosures: Meets the product standard's requirements.
More info
▲General specifications
| Product Name | Eaton Moeller® series R9 Accessory Guide cone |
| Catalog Number | 191848 |
| Model Code | SFGAB |
| EAN | 4015081923694 |
| Product Length/Depth | 44 mm |
| Product Height | 35 mm |
| Product Width | 44 mm |
| Product Weight | 0.012 kg |
| Compliances | CE |
Product specifications
| Type | Guide cone |
| 10.10 Temperature rise | Not applicable. |
| 10.11 Short-circuit rating | Not applicable. |
| 10.12 Electromagnetic compatibility | Not applicable. |
| 10.13 Mechanical function | Not applicable. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Accessory/spare part type | Connection piece for switch operating shaft |
| Ambient operating temperature - max | 50 °C |
| Ambient operating temperature - min | -25 °C |
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
