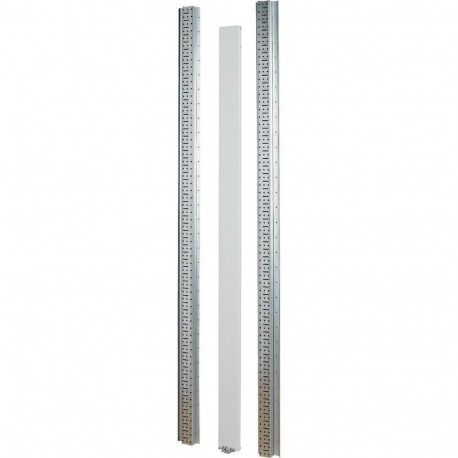

Kit for partitioned configuration H20 BPZ-SF-20 Kit for partitioned configuration, BPZ-SF, enclosure height 20, front plate height 1950 mm, for 600/400 mm partition in floor standing distribution boards with a width of 1000 mm, for 600/600 mm partition in floor standing distribution boards with a width of 1200 mm, 1 pair of BPZ-FPS front plate supports are additionally required for each kit, material: sheet steel sections, zinc coated, RAL 7035 powder-spray painted sheet steel front plate, sections are mounted on the distribution board. Equipment supplied: 2 sheet metal sections, 1 front cover, various mounting accessories

Automation > Component for installation (switchgear cabinet)
Enclosures
