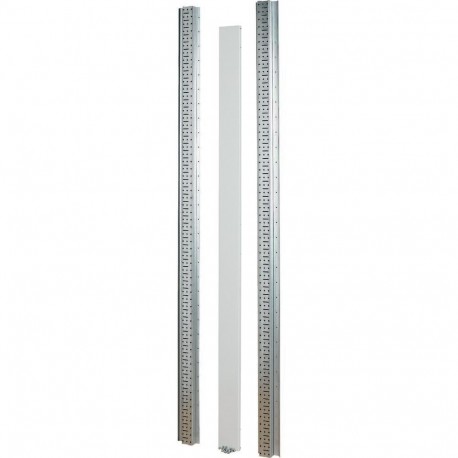

EATON - MOELLER BPZ-SF-15 BPZ-SF-15 173627 Y7-173627 EATON ELECTRIC Separation frame H15 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BPZ-SF-15 173627 Y7-173627 EATON ELECTRIC Separation frame H15

BPZ-SF-15

173627

Y7-173627

EATON - MOELLER

1 Pcs.

Separation frame H15 BPZ-SF-15 Kit for partitioned configuration, BPZ-SF, enclosure height 15, front plate height 1450 mm, for 600/400 mm partition in wall-mounting distribution systems with a width of 1000 mm, for 600/600 mm partition in wall-mounting distribution systems with a width of 1200 mm, BPZ-SFB mounting section must be ordered separately depending on the enclosure width, 1 pair of BPZ-FPS front plate supports are additionally required for each kit, material: sheet steel sections, zinc coated, RAL 7035 powder-spray painted sheet steel front plate, sections are mounted on the distribution board . Equipment supplied: 2 sheet metal sections, 1 front cover, various mounting accessories

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton xEnergy Basic installation component
Catalog Number
173627
Model Code
BPZ-SF-15
EAN
4015081700349
Product Length/Depth
60 mm
Product Height
1550 mm
Product Width
150 mm
Product Weight
5.8 kg
Compliances
RoHS conform

Delivery program

Type
Additional equipment
Model
Connector / partition piece
Application
Partitioned configuration in surface-mounted service distribution board
Color
Gray
Light gray (RAL 7035)

Technical data - mechanical

Surface finishing
With powder coating
Mounting method
Surface mounting
Mounting position
Vertical
Material
Metal
Load capacity - max
0 kg
Housing material
Sheet steel
Suitable for enclosure building height
1560 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm

Additional information

Functions
Additional equipment
RAL-number
7035

ETIM for 173627 Cabinets and enclosures (EC002620)
Feature Name Feature Value
Model (EF000010) Connector / partition piece
Suitable for enclosure building width (EF000326) 0 mm
Suitable for enclosure building height (EF009583) 1560 mm
Suitable for enclosure building depth (EF000327) 0 mm
Width (EF000008) 150 mm
Height (EF000040) 1550 mm
Depth (EF000049) 60 mm
Max. load capacity (EF000258) 0 kg
Material (EF002169) Metal
Colour (EF000007) Grey
RAL-number (EF000116) 7035
