BPZ-SF-10 173625 Y7-173625 EATON ELECTRIC Separation frame H10

BPZ-SF-10

173625

Y7-173625

EATON - MOELLER

1 Pcs.

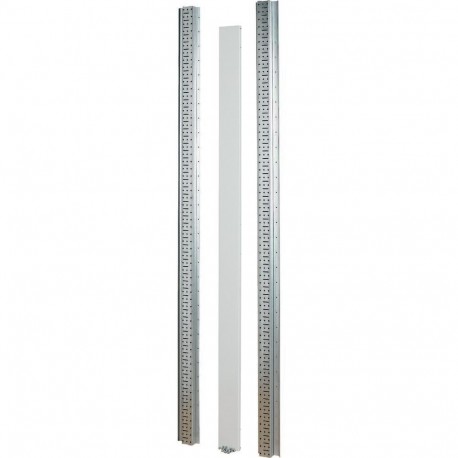

Separation frame H10 BPZ-SF-10 Kit for partitioned configuration, BPZ-SF, enclosure height 10, front plate height 950 mm, for 600/400 mm partition in wall-mounting distribution systems with a width of 1000 mm, for 600/600 mm partition in wall-mounting distribution systems with a width of 1200 mm, BPZ-SFB mounting section must be ordered separately depending on the enclosure width, 1 pair of BPZ-FPS front plate supports are additionally required for each kit, material: sheet steel sections, zinc coated, RAL 7035 powder-spray painted sheet steel front plate, sections are mounted on the distribution board . Equipment supplied: 2 sheet metal sections, 1 front cover, various mounting accessories

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed as an Eaton Moeller BPZ-SF-10 separation frame, this partition piece provides internal division and structural support within modular switchgear enclosures. Separation frames are typically used to segregate functional compartments, limit arc fault propagation, and organize electrical layouts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Connector / partition piece
  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 1060 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 150 mm
  • Height (EF000040): 1050 mm
  • Depth (EF000049): 60 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲

General specifications

Product Name
Eaton xEnergy Basic installation component
Catalog Number
173625
Model Code
BPZ-SF-10
EAN
4015081700325
Product Length/Depth
60 mm
Product Height
1050 mm
Product Width
150 mm
Product Weight
3.9 kg
Compliances
RoHS conform

Delivery program

Type
Additional equipment
Model
Connector / partition piece
Application
Partitioned configuration in surface-mounted service distribution board
Color
Light gray (RAL 7035)
Gray

Technical data - mechanical

Surface finishing
With powder coating
Mounting method
Surface mounting
Mounting position
Vertical
Material
Metal
Load capacity - max
0 kg
Housing material
Sheet steel
Suitable for enclosure building height
1060 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm

Additional information

Functions
Additional equipment
RAL-number
7035

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
