EATON - MOELLER BPZ-SF-200/4 BPZ-SF-200/4 173628 Y7-173628 EATON ELECTRIC Separation frame 200mm compartment H4 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BPZ-SF-200/4 173628 Y7-173628 EATON ELECTRIC Separation frame 200mm compartment H4

BPZ-SF-200/4

173628

Y7-173628

EATON - MOELLER

1 Pcs.

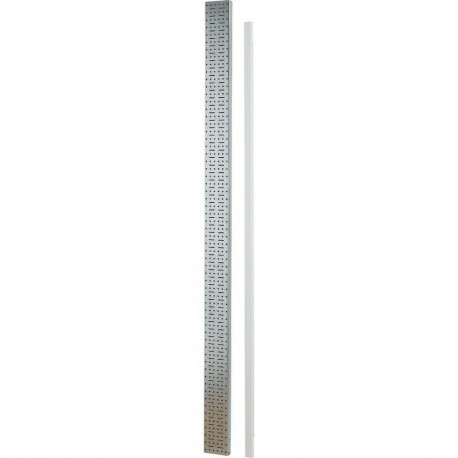

Separation frame 200mm compartment H4 BPZ-SF-200/4 Eaton xEnergy Basic LV systems Low voltage switchgear. Separation frame 200mm compartment H4 Kit for partitioned configuration, BPZ-SF-200, enclosure height 4, front plate height 350 mm, for 200-mm compartment in surface-mounted distribution board (for widths of 800 mm or more), BPZ-SFB mounting section must be ordered separately depending on the enclosure width, 1 pair of BPZ-FPS front plate supports are additionally required for each kit. Material: sheet steel sections, zinc coated, RAL 7035 powder-spray painted sheet steel front plate, sections are mounted on the distribution board. Equipment supplied: 2 sheet metal sections, 1 front cover, various mounting accessories

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The BPZ-SF-200/4 173628 Y7-173628 Eaton Electric Separation frame 200mm compartment H4 acts as a functional partition component designed to divide modular interior spaces within electrical distribution boards. Separation frames maintain physical and thermal boundaries between adjacent functional units to improve overall safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Connector / partition piece
  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 460 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 100 mm
  • Height (EF000040): 450 mm
  • Depth (EF000049): 60 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲

General specifications

Product Name
Eaton xEnergy Basic installation component
Catalog Number
173628
Model Code
BPZ-SF-200/4
EAN
4015081700356
Product Length/Depth
60 mm
Product Height
450 mm
Product Width
100 mm
Product Weight
1.1 kg
Compliances
RoHS conform

Delivery program

Type
Additional equipment
Model
Connector / partition piece
Application
Partitioned configuration in surface-mounted service distribution board
Color
Gray
Light gray (RAL 7035)

Technical data - mechanical

Surface finishing
With powder coating
Mounting method
Surface mounting
Mounting position
Vertical
Material
Metal
Load capacity - max
0 kg
Housing material
Sheet steel
Suitable for enclosure building height
460 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm

Additional information

Functions
Additional equipment
RAL-number
7035

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
