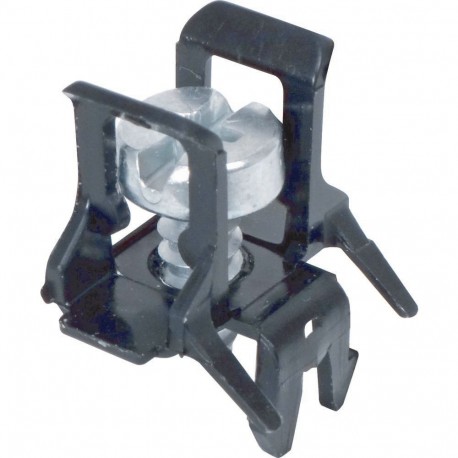

EATON - MOELLER UBS4,8 UBS4,8 002288 Y7-2288 EATON ELECTRIC Self-tapping screw, captive View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UBS4,8 002288 Y7-2288 EATON ELECTRIC Self-tapping screw, captive

UBS4,8

002288

Y7-2288

EATON - MOELLER

1 Pcs.

Self-tapping screw, captive Eaton xEnergy Safety Ci LV systems LV switchgear. Self-tapping screw, captive Captive fixing screw, for fixing the mounting systems, can be used for mounting plates, pre-drilled mounting plate, module mounting rail, mounting rails, spare parts

Automation > Tapping screw
Insulating Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller UBS4,8 self-tapping screw is designed for rapid assembly of sheet metal enclosures and electrical panel components without pre-tapped holes. Hardened steel construction ensures secure bite and holding strength. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Steel
  • Surface protection (EF000139): Galvanic/electrolytic zinc plated
  • Hardened (EF004739): Yes
  • Countersunk head (EF013941): No
  • With fixed flange (EF016409): No
  • With washer and seal (EF016410): No
  • Head diameter (EF001001): 203.1999986588800089 mm
  • Screwing system (EF000013): Pozidriv PZ
  • Bit size (EF006615): 0
  • Thread diameter (EF004757): 4.8 mm
  • Thread per inch (EF012132): 1
  • Thread length (EF000368): 0 mm
  • Tip shape (EF015028): Self-drilling
  • Length (EF001438): 30 mm

More info

▲

General specifications

Product Name
Eaton xEnergy Safety Ci screw
Catalog Number
002288
Model Code
UBS4,8
EAN
4015080022886
Product Length/Depth
30 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
0.004 kg
Compliances
RoHS conform

Product specifications

Special features
Type
  • Accessory for mounting systems
  • Mounting system
  • xEnergy Safety Ci
Thread length
0 in
Features
Hardened
Accessory
Self boring
Head diameter
8 in
Thread size
Other
Fitted with:
Point
Used with
MM-CI...perforated panels
ZK-4...-CI counter circuit
M3-CI…, M-CI... mounting panels
CL mounting rails
ML-4-CI module strips
SL630-ADP-CI support angle adapter
Accessory for mounting systems
Mounting system
xEnergy Safety Ci
Head style
Other
Surface protection
Galvanic/electrolytic zinc plated
Accessory/spare part type
Captive screw
Material quality
Other
Material
Steel
Unit type
Modular system
Thread diameter
4.8 mm
Thread per inch
1
Screwing system
Pozidriv PZ
Thread type
Other
Bit size
0
Tie shape
Self-drilling
Surface treatment
Other
