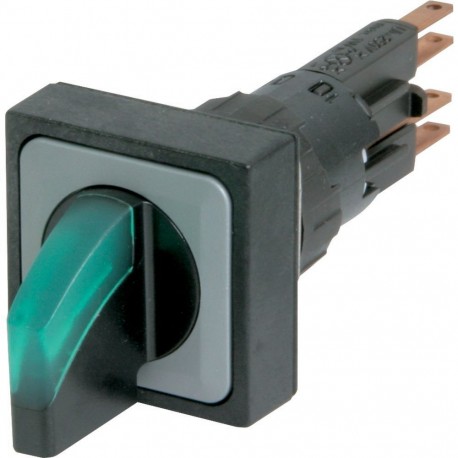

Q25LWK1R-GN/WB 040380 Y7-40380 EATON ELECTRIC Illuminated selector switch actuator, 2 positions, green, main..
Q25LWK1R-GN/WB
040380
Y7-40380
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller Q25LWK1R-GN/WB is a square illuminated selector switch actuator utilized in automation control panels for manual signal routing. Operators rely on these devices to initiate maintained switching actions while monitoring optical status signals on manufacturing equipment.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): Yes
- Colour control element (EF007167): Black
- Colour indicator light cap (EF007165): Green
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
UL Category Control No.: NKCR
UL File No.: E29184
UL 508
CE
UL
CSA-C22.2 No. 14-05
CSA
IEC/EN 60947-5
CSA File No.: 46552
IEC/EN 60947
Features & Functions
VS anti-rotation tab
General
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Actuator
Maintained
