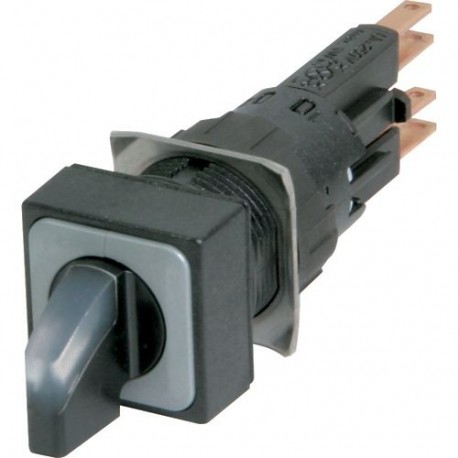

Q18LWK1R-WS/WB 039335 Y7-39335 EATON ELECTRIC Illuminated selector switch actuator, 2 positions, white, main..
Q18LWK1R-WS/WB
039335
Y7-39335
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller illuminated selector switch actuator offers dependable two-position control with integrated lighting capabilities for industrial control panels. Plant engineers install these compact toggle units to facilitate clear mode selection and status indication on machinery control boards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): Yes
- Colour control element (EF007167): Black
- Colour indicator light cap (EF007165): White
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
UL File No.: E29184
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
CSA File No.: 46552
CSA
CE
IEC/EN 60947
UL 508
IEC/EN 60947-5
UL
Features & Functions
Filament bulb (24 V)
General
2.8 x 0.8 mm to DIN 46244, Blade terminal
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Switching function latching
