Q18LWK1-RT/WB 038930 Y7-38930 EATON ELECTRIC Illuminated selector switch actuator, 2 positions, red, momenta..
Q18LWK1-RT/WB
038930
Y7-38930
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

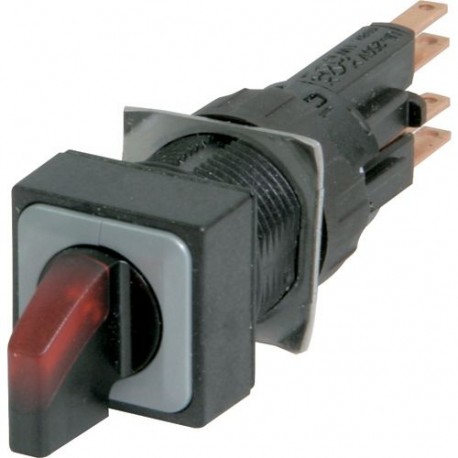

The Q18LWK1-RT/WB Eaton Moeller illuminated selector switch actuator is a compact control component used in machinery control panels to route electrical signals and indicate operational modes. This square-bezel unit features a red spring-return toggle mechanism for momentary switching duties. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions: 2
- Type of control element: Toggle
- Suitable for lighting: Yes
- Colour control element: Black
- Colour indicator light cap: Red
- Construction type lens: Square
- Hole diameter: 16 mm
- Width opening: 0 mm
- Height opening: 0 mm
- Switching function latching: No
- Spring-return: Yes
- With front ring: Yes
- Material front ring: Plastic
- Colour front ring: Black
- Degree of protection (IP), front side: IP65
- Degree of protection (NEMA): 1
More info
▲General specifications
IEC/EN 60947-5
CSA Class No.: 3211-03
UL 508
CE
CSA-C22.2 No. 14-05
IEC/EN 60947
CSA File No.: 46552
UL Category Control No.: NKCR
CSA
UL
Features & Functions
Filament bulb (24 V)
General
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Spring-return
