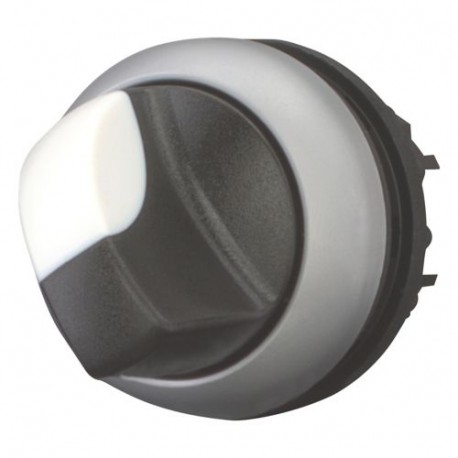

M22-WKV 216874 Y7-216874 EATON ELECTRIC Selector switch, toggle, V position, black, maintained
M22-WKV
216874
Y7-216874
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Eaton Moeller selector switch, toggle, V position, black, maintained, cataloged as M22-WKV, serves as a durable operator interface component for electrical control panels. Toggle and selector switches allow operators to manually route electrical signals, change machine operating states, and maintain specific settings in industrial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
UL 508
IEC 60947-5
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
VDE
CSA Class No.: 3211-03
IEC/EN 60947-5
VDE 0660
CSA
CSA File No.: 012528
CSA-C22.2 No. 94-91
CE
IEC/EN 60947
UL
UL Category Control No.: NKCR
UL File No.: E29184
CSA-C22.2 No. 14-05
DNV
GL
LR
Features & Functions
Classical
General
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
Yes
Actuator
Maintained
