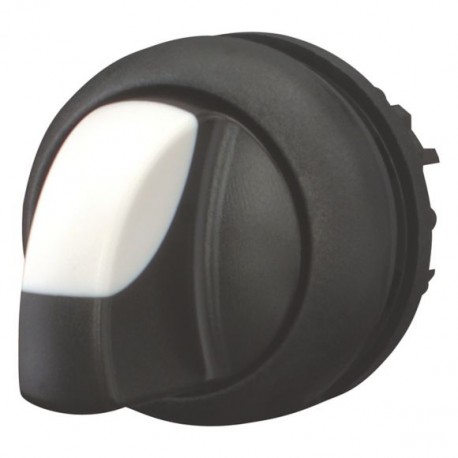

M22S-WRK4 279432 Y7-279432 EATON ELECTRIC Selector switch, toggle, 4 positions, black 1 0 2 0 3 0 4 0, maint..
M22S-WRK4
279432
Y7-279432
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller selector switch (M22S-WRK4) provides multi-position manual control for complex automation tasks and machine operation routines. Multi-position toggle operators are standard in industrial environments requiring distinct operational modes.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 4
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲UL 508
UL
CSA File No.: 012528
CSA
VDE 0660
CSA-C22.2 No. 94-91
IEC/EN 60947-5
CSA-C22.2 No. 14-05
CSA Class No.: 3211-03
CE
IEC/EN 60947
UL File No.: E29184
DNV
GL
LR
Not suitable for coding adapters
Classical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Damp heat, cyclic, to IEC 60068-2-30
With SWD-RMQ connections
Switching function latching
