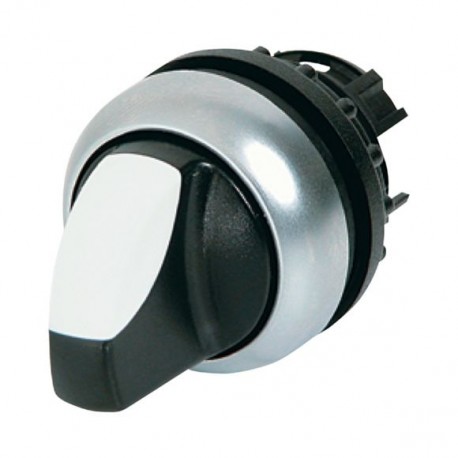

EATON - MOELLER M22-WRK4 M22-WRK4 279431 Y7-279431 EATON ELECTRIC Selector switch, toggle, 4 positions, black 1 0 2 0 3 0 4 0, mainta.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRK4 279431 Y7-279431 EATON ELECTRIC Selector switch, toggle, 4 positions, black 1 0 2 0 3 0 4 0, mainta..

M22-WRK4

279431

Y7-279431

EATON - MOELLER

5 Pcs.

Selector switch, toggle, 4 positions, black 1 0 2 0 3 0 4 0, maintained M22-WRK4 Eaton Moeller® series M22 Changeover switch, RMQ-Titan, With thumb-grip, maintained, 4 positions, Bezel: titanium Changeover switch, Product range: RMQ-Titan, Single unit, Design: With thumb-grip, maintained, 4 positions, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Not suitable for coding adapters, Use M22‐A4 fixing adapter ￫ accessories, Labels ￫ accessories, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Changeover switch
Catalog Number
279431
Model Code
M22-WRK4
EAN
4015082794316
Product Length/Depth
45 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.016 kg
Compliances
CE Marked
Certifications
EN 60947-5
CSA Std. C22.2 No. 14-05
IEC 60947-5
CSA Std. C22.2 No. 94-91
UL 508
VDE
IEC/EN 60947-5
VDE 0660
CSA Class No.: 3211-03
UL
UL File No.: E29184
CE
CSA
CSA File No.: 012528
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
IEC/EN 60947
UL Category Control No.: NKCR

ETIM for 279431 Low-voltage industrial controls and switchgear (EC000222)
Feature Name Feature Value
Number of switch positions (EF000231) 2
Type of control element (EF006976) Toggle
Suitable for lighting (EF001142) No
Colour control element (EF007167) Black
Colour indicator light cap (EF007165) Other
Construction type lens (EF006253) Round
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Switching function latching (EF007447) Yes
Spring-return (EF001407) No
With front ring (EF006014) Yes
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Titanium
Degree of protection (IP), front side (EF003118) IP66
Degree of protection (NEMA) (EF011959) 4X, 13
