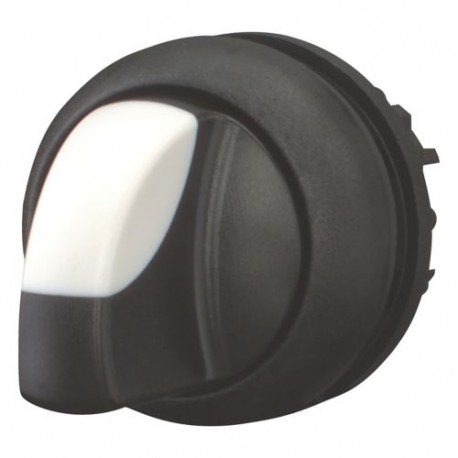

EATON - MOELLER M22S-WK3 M22S-WK3 216871 Y7-216871 EATON ELECTRIC Selector switch, toggle, 3 positions, black, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-WK3 216871 Y7-216871 EATON ELECTRIC Selector switch, toggle, 3 positions, black, momentary

M22S-WK3

216871

Y7-216871

EATON - MOELLER

5 Pcs.

Selector switch, toggle, 3 positions, black, momentary M22S-WK3 Eaton Moeller® series M22 Changeover switch, RMQ-Titan, With thumb-grip, momentary, 3 positions, Bezel: black Changeover switch, Product range: RMQ-Titan, Single unit, Design: With thumb-grip, momentary, 3 positions, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, with plunger bridge for the middle contact, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Changeover switch
Catalog Number
216871
Model Code
M22S-WK3
EAN
4015082168711
Product Length/Depth
46 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
VDE 0660
CE
CSA
CSA Class No.: 3211-03
UL
IEC/EN 60947
IEC/EN 60947-5
UL 508
CSA File No.: 012528
CSA-C22.2 No. 14-05
UL File No.: E29184

ETIM for 216871 Low-voltage industrial controls and switchgear (EC000222)
Feature Name Feature Value
Number of switch positions (EF000231) 3
Type of control element (EF006976) Toggle
Suitable for lighting (EF001142) No
Colour control element (EF007167) Black
Colour indicator light cap (EF007165) Other
Construction type lens (EF006253) Round
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Switching function latching (EF007447) No
Spring-return (EF001407) Yes
With front ring (EF006014) Yes
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Black
Degree of protection (IP), front side (EF003118) IP66
Degree of protection (NEMA) (EF011959) 4X, 13
