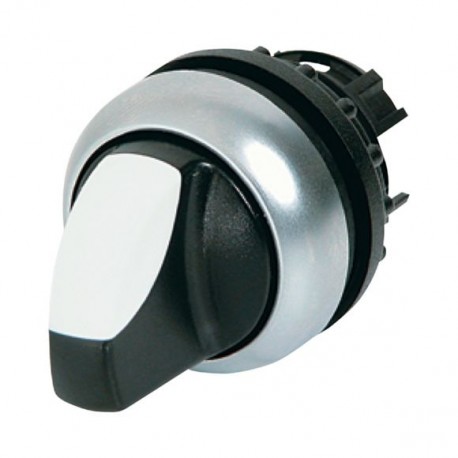

EATON - MOELLER M22-WK3 M22-WK3 216870 Y7-216870 EATON ELECTRIC Selector switch, toggle, 3 positions, black, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WK3 216870 Y7-216870 EATON ELECTRIC Selector switch, toggle, 3 positions, black, momentary

M22-WK3

216870

Y7-216870

EATON - MOELLER

1 Pcs.

Selector switch, toggle, 3 positions, black, momentary M22-WK3 Eaton Moeller® series M22 Selector switch, RMQ-Titan, With thumb-grip, momentary, 3 positions, Bezel: titanium Changeover switch, Product range: RMQ-Titan, Single unit, Design: With thumb-grip, momentary, 3 positions, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, with plunger bridge for the middle contact, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number M22-WK3 is a three-position toggle selector switch with momentary spring-return action for dynamic control tasks. Panel builders implement these components where temporary contact switching or fast mode adjustments are required. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 3
  • Type of control element (EF006976): Toggle
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Selector switch
Catalog Number
216870
Model Code
M22-WK3
EAN
4015082168704
Product Length/Depth
46 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Compliances
CE Marked
Certifications
UL 508
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
EN 60947-5
IEC 60947-5
VDE
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
IEC/EN 60947-5
CSA File No.: 012528
CSA-C22.2 No. 14-05
UL
CSA
UL Category Control No.: NKCR
UL File No.: E29184
CE
IEC/EN 60947
VDE 0660
