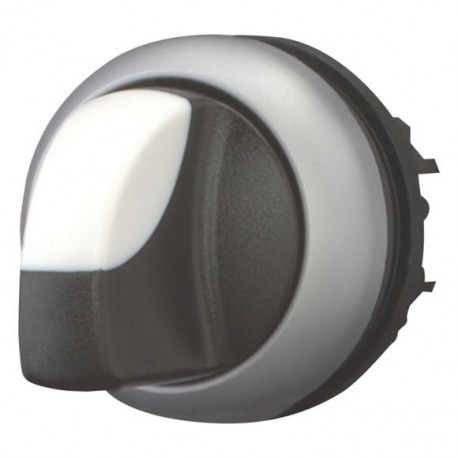

M22-WK 216865 Y7-216865 EATON ELECTRIC Selector switch, toggle, 2 positions, black, momentary
M22-WK
216865
Y7-216865
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for efficient manual control, this toggle selector switch provides immediate switching action for automated production machinery and control desks. The spring-return mechanism ensures reliable temporary signal transmission across connected control loops. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
CSA Std. C22.2 No. 14-05
IEC 60947-5
UL 508
EN 60947-5
VDE
IEC/EN 60947-5
VDE 0660
UL
CSA
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
CSA Class No.: 3211-03
CE
CSA File No.: 012528
IEC/EN 60947
UL File No.: E29184
