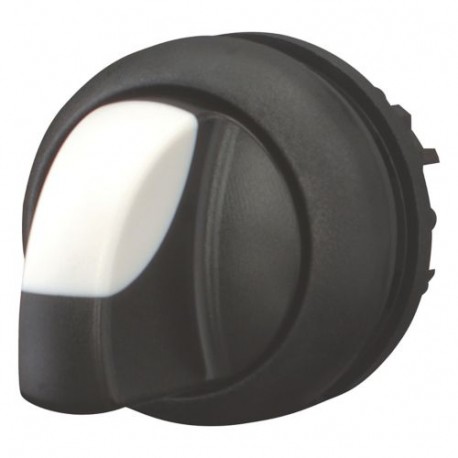

EATON - MOELLER M22S-WRK M22S-WRK 216869 Y7-216869 EATON ELECTRIC Selector switch, toggle, 2 positions, black, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-WRK 216869 Y7-216869 EATON ELECTRIC Selector switch, toggle, 2 positions, black, maintained

M22S-WRK

216869

Y7-216869

EATON - MOELLER

10 Pcs.

Selector switch, toggle, 2 positions, black, maintained M22S-WRK Eaton Moeller® series M22 Changeover switch, RMQ-Titan, With thumb-grip, maintained, 2 positions, Bezel: black Changeover switch, Product range: RMQ-Titan, Single unit, Design: With thumb-grip, maintained, 2 positions, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Featuring a toggle control element, the Eaton Moeller M22S-WRK selector switch allows manual selection between two distinct operational states on industrial control panels. These devices are standard in electrical distribution systems requiring sustained circuit routing. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions: 2
  • Type of control element: Toggle
  • Suitable for lighting: No
  • Colour control element: Black
  • Construction type lens: Round
  • Hole diameter: 22.5 mm
  • Width opening: 0 mm
  • Height opening: 0 mm
  • Switching function latching: Yes
  • Spring-return: No
  • With front ring: Yes
  • Material front ring: Plastic
  • Colour front ring: Black
  • Degree of protection (IP), front side: IP66
  • Degree of protection (NEMA): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Changeover switch
Catalog Number
216869
Model Code
M22S-WRK
EAN
4015082168698
Product Length/Depth
46 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
UL 508
VDE 0660
UL Category Control No.: NKCR
CE
CSA-C22.2 No. 94-91
CSA
CSA Class No.: 3211-03
IEC/EN 60947-5
UL
CSA File No.: 012528
UL File No.: E29184
CSA-C22.2 No. 14-05
IEC/EN 60947
DNV
GL
LR
