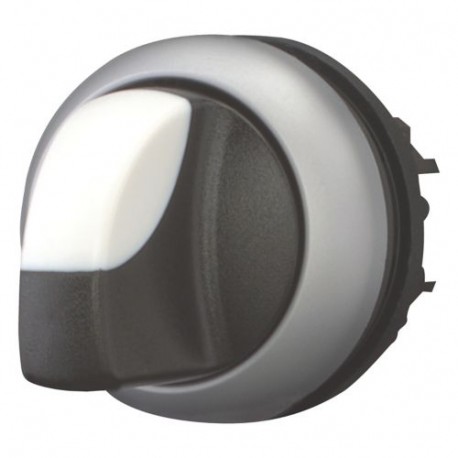

EATON - MOELLER M22-WRK M22-WRK 216867 Y7-216867 EATON ELECTRIC Selector switch, toggle, 2 positions, black, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRK 216867 Y7-216867 EATON ELECTRIC Selector switch, toggle, 2 positions, black, maintained

M22-WRK

216867

Y7-216867

EATON - MOELLER

1 Pcs.

Selector switch, toggle, 2 positions, black, maintained M22-WRK Eaton Moeller® series M22 Changeover switch, RMQ-Titan, With thumb-grip, maintained, 2 positions, Bezel: titanium Changeover switch, Product range: RMQ-Titan, Single unit, Design: With thumb-grip, maintained, 2 positions, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Changeover switch
Catalog Number
216867
Model Code
M22-WRK
EAN
4015082168674
Product Length/Depth
46 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Compliances
CE Marked
Certifications
IEC 60947-5
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
EN 60947-5
UL 508
VDE
CSA Class No.: 3211-03
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
IEC/EN 60947
CE
UL
CSA
UL File No.: E29184
CSA File No.: 012528
CSA-C22.2 No. 14-05
IEC/EN 60947-5
VDE 0660
DNV
GL
LR

ETIM for 216867 Low-voltage industrial controls and switchgear (EC000222)
Feature Name Feature Value
Number of switch positions (EF000231) 2
Type of control element (EF006976) Toggle
Suitable for lighting (EF001142) No
Colour control element (EF007167) Black
Colour indicator light cap (EF007165) Other
Construction type lens (EF006253) Round
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Switching function latching (EF007447) Yes
Spring-return (EF001407) No
With front ring (EF006014) Yes
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Titanium
Degree of protection (IP), front side (EF003118) IP66
Degree of protection (NEMA) (EF011959) 4X, 13
