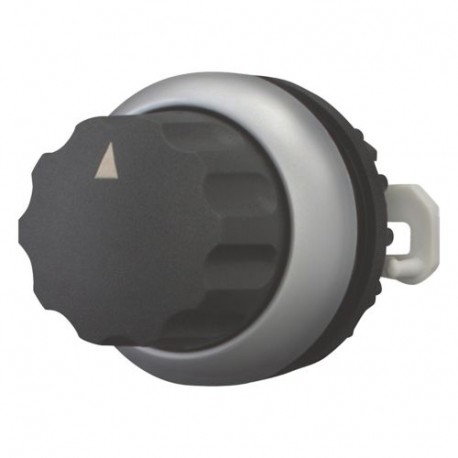

EATON - MOELLER M22-WR4 M22-WR4 279419 Y7-279419 EATON ELECTRIC Selector switch, 4 positions, black 1 0 2 0 3 0 4 0, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WR4 279419 Y7-279419 EATON ELECTRIC Selector switch, 4 positions, black 1 0 2 0 3 0 4 0, maintained

M22-WR4

279419

Y7-279419

EATON - MOELLER

1 Pcs.

Selector switch, 4 positions, black 1 0 2 0 3 0 4 0, maintained M22-WR4 Eaton Moeller® series M22 Changeover switch, RMQ-Titan, With rotary head, maintained, 4 positions, inscribed, Bezel: titanium Changeover switch, Product range: RMQ-Titan, Single unit, Design: With rotary head, maintained, 4 positions, inscribed, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Not suitable for coding adapters, Use M22‐A4 fixing adapter → accessories, Labels → accessories, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22-WR4 selector switch serves as a manual operator control device used on industrial control panels to change operational modes, start sequences, or select specific circuit paths. These components are typically mounted on machine interfaces or enclosure doors to give operators direct, tactile command over automated processes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Rotating button
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Changeover switch
Catalog Number
279419
Model Code
M22-WR4
EAN
4015082794194
Product Length/Depth
45 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.016 kg
Compliances
CE Marked
Certifications
EN 60947-5
CSA Std. C22.2 No. 14-05
UL 508
IEC 60947-5
CSA Std. C22.2 No. 94-91
VDE
CSA Class No.: 3211-03
IEC/EN 60947-5
CE
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
VDE 0660
CSA File No.: 012528
UL
UL Category Control No.: NKCR
UL File No.: E29184
CSA
IEC/EN 60947
