View larger
Images are for illustrative purposes only. Please refer to data sheet for details

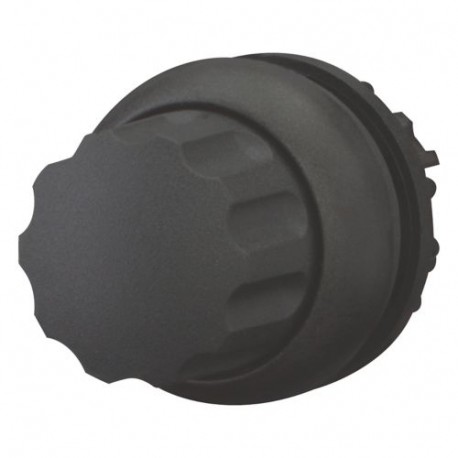

M22S-WR3-* 226841 Y7-226841 EATON ELECTRIC Selector switch, 3 positions, black, maintained, non-standard ins..
M22S-WR3-*
226841
Y7-226841
EATON - MOELLER
1 Pcs.
Selector switch, 3 positions, black, maintained, non-standard inscription
M22S-WR3-*
Eaton Moeller® series M22 Changeover switch, RMQ-Titan, With rotary head, maintained, 3 positions, individual facility for inscription, Bezel: black
Changeover switch, Product range: RMQ-Titan, Single unit, Design: With rotary head, maintained, 3 positions, individual facility for inscription, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, with plunger bridge for the middle contact, Notes on customized inscription → Data sheet, additional product information (links), Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Changeover switch
Catalog Number
226841
Model Code
M22S-WR3-*
Product Length/Depth
43 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
CSA Class No.: 3211-03
VDE 0660
UL
CE
CSA-C22.2 No. 14-05
UL 508
IEC/EN 60947
UL File No.: E29184
CSA
CSA File No.: 012528
IEC/EN 60947-5
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
DNV
GL
LR
VDE 0660
UL
CE
CSA-C22.2 No. 14-05
UL 508
IEC/EN 60947
UL File No.: E29184
CSA
CSA File No.: 012528
IEC/EN 60947-5
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
DNV
GL
LR
Catalog Notes
Notes on customized inscription → Data sheet, additional product information (links)
| Feature Name | Feature Value |
|---|---|
| Number of switch positions (EF000231) | 3 |
| Type of control element (EF006976) | Rotating button |
| Suitable for lighting (EF001142) | No |
| Colour control element (EF007167) | Black |
| Colour indicator light cap (EF007165) | Other |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 22.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Switching function latching (EF007447) | Yes |
| Spring-return (EF001407) | No |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Plastic |
| Colour front ring (EF002429) | Black |
| Degree of protection (IP), front side (EF003118) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X, 13 |
