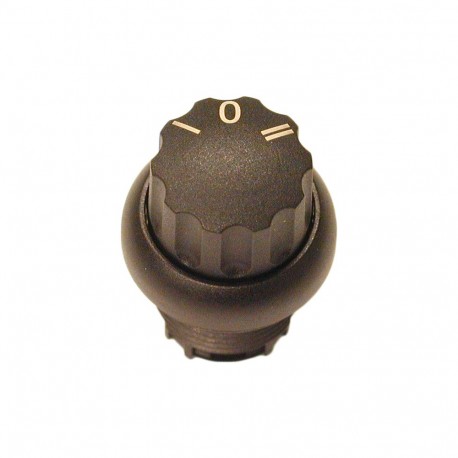

EATON - MOELLER M22S-W3 M22S-W3 216862 Y7-216862 EATON ELECTRIC Selector switch, 3 positions, black I 0 II, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-W3 216862 Y7-216862 EATON ELECTRIC Selector switch, 3 positions, black I 0 II, momentary

M22S-W3

216862

Y7-216862

EATON - MOELLER

1 Pcs.

Selector switch, 3 positions, black I 0 II, momentary M22S-W3 Eaton Moeller® series M22 Selector switch, RMQ-Titan, With rotary head, momentary, 3 positions, inscribed, Bezel: black Changeover switch, Product range: RMQ-Titan, Single unit, Design: With rotary head, momentary, 3 positions, inscribed, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, with plunger bridge for the middle contact, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A three-position selector switch is commonly utilized in industrial control stations to direct multi-state operations such as manual, off, or automatic machine cycles. The rotating button allows operators to select precise functional parameters within an electrical control system. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 3
  • Type of control element (EF006976): Rotating button
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Selector switch
Catalog Number
216862
Model Code
M22S-W3
EAN
4015082168629
Product Length/Depth
43 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
UL 508
UL Category Control No.: NKCR
CSA File No.: 012528
CSA-C22.2 No. 14-05
IEC/EN 60947
CSA
CSA-C22.2 No. 94-91
UL File No.: E29184
IEC/EN 60947-5
CE
CSA Class No.: 3211-03
VDE 0660
UL
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
