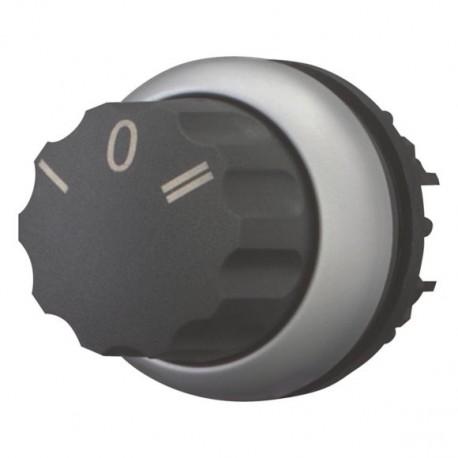

M22-WR3 216863 Y7-216863 EATON ELECTRIC Selector switch, 3 positions, black I 0 II, maintained
M22-WR3
216863
Y7-216863
EATON - MOELLER
5 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part M22-WR3 is a maintained three-position selector switch engineered for reliable manual operation in heavy-duty control panels. Technicians integrate these switching components to govern system logic, manage sequential automation routines, and toggle equipment states.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 3
- Type of control element (EF006976): Rotating button
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
UL 508
IEC 60947-5
VDE
CE
CSA-C22.2 No. 94-91
UL File No.: E29184
CSA
UL Category Control No.: NKCR
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
UL
CSA File No.: 012528
IEC/EN 60947-5
VDE 0660
IEC/EN 60947
Plunger bridge for the middle contact
Mechanical, According to IEC/EN 60068-2-27
Damp heat, constant, to IEC 60068-2-78
With SWD-RMQ connections
Maintained
