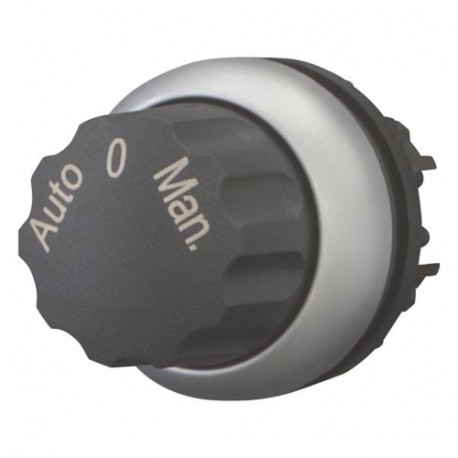

M22-WR3-X94 226838 Y7-226838 EATON ELECTRIC Selector switch, 3 positions, black AUTO 0 MANUAL, maintained
M22-WR3-X94
226838
Y7-226838
EATON - MOELLER
5 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A selector switch allows operators to manually shift machine logic between multiple operational states, such as automated or manual runs, in industrial automation systems. This Eaton Moeller M22-WR3-X94 unit integrates seamlessly into standard control panel cutouts. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions: 3
- Type of control element: Rotating button
- Suitable for lighting: No
- Colour control element: Black
- Construction type lens: Round
- Hole diameter: 22.5 mm
- Width opening: 0 mm
- Height opening: 0 mm
- Switching function latching: Yes
- Spring-return: No
- With front ring: Yes
- Material front ring: Plastic
- Colour front ring: Titanium
- Degree of protection (IP), front side: IP66
- Degree of protection (NEMA): 4X, 13
More info
▲General specifications
Bureau Veritas
CE Marked
CCC Marked
Lloyd's Register Certified
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
CSA
CSA-C22.2 No. 14-05
IEC/EN 60947-5
VDE 0660
CSA Class No.: 3211-03
CSA File No.: 012528
IEC/EN 60947
UL 508
UL File No.: E29184
UL
CE
DNV
GL
LR
Features & Functions
Classical
Plunger bridge for the middle contact
General
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
Yes
Actuator
Switching function latching
