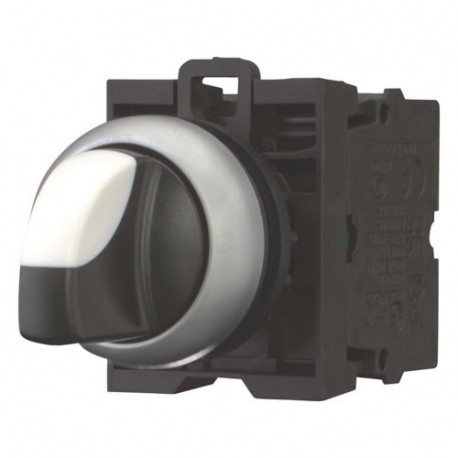

EATON - MOELLER M22-WRK3/K20 M22-WRK3/K20 216520 Y7-216520 EATON ELECTRIC Selector switch, 2N/O, 3 positions, front mount View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRK3/K20 216520 Y7-216520 EATON ELECTRIC Selector switch, 2N/O, 3 positions, front mount

M22-WRK3/K20

216520

Y7-216520

EATON - MOELLER

5 Pcs.

Selector switch, 2N/O, 3 positions, front mount M22-WRK3/K20 Eaton Moeller® series M22 Changeover switch, RMQ-Titan, With thumb-grip, maintained, 3 positions, 2 N/O, Bezel: titanium Changeover switch, Product range: RMQ-Titan, Complete unit, Design: With thumb-grip, maintained, Screw connection, 3 positions, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: no, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Contactor states 0, I and II correspond with the position of the actuator as viewed from the front., Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Selector switch, complete
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Selector switch
Catalog Number
216520
Model Code
M22-WRK3/K20
EAN
4015082165208
Product Length/Depth
130 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.037 kg
Certifications
UL
UL File No.: E29184
CSA File No.: 012528
IEC/EN 60947
CSA
CSA-C22.2 No. 14-05
CE
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL 508
UL Category Control No.: NKCR
VDE 0660
DNV
GL
LR

Features & Functions

Bezel color
Titanium
Bezel material
Plastic
Design
With thumb-grip
Classical
Electric connection type
Screw connection
Fitted with:
Front ring
Functions
Stay-put/spring-return function, can be changed with coding parts M22-XC-Y

General

Degree of protection
IP66
NEMA 12
Lifespan, mechanical
100,000 Operations
Opening diameter
22.5 mm
Operating frequency
2000 Operations/h
Operating torque
0.3 Nm
Product Category
RMQ-Titan
Size
Front diameter: 29.7 mm
Switching angle
60 °
Type
Selector switch actuator

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Communication

Connection to SmartWire-DT
No
Connection type
Screw connection

Actuator

Actuator color
Black
Actuator function
Maintained
Switching function latching
Actuator type
Toggle
Number of switch positions
3

Contacts

Force for positive opening - min
0 N
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
2

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.11 W
Rated operational current for specified heat dissipation (In)
6 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 216520 Low-voltage industrial controls and switchgear (EC001029)
Feature Name Feature Value
Number of switch positions (EF000231) 3
Type of control element (EF006976) Toggle
Suitable for lighting (EF001142) No
With light source (EF005905) No
Colour button (EF000190) Black
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Switching function latching (EF007447) Yes
Spring-return (EF001407) No
Degree of protection (IP) (EF005474) IP66
Degree of protection (NEMA) (EF011959) 12
Supply voltage (EF004127) 0 V
Number of contacts as normally open contact (EF008256) 2
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as change-over contact (EF008257) 0
Type of electric connection (EF003961) Screw connection
With front ring (EF006014) Yes
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Titanium
