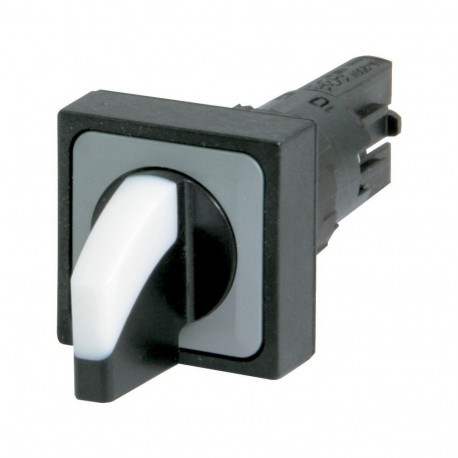

Q25WK1 036599 Y7-36599 EATON ELECTRIC Selector switch, 2 positions, white, momentary
Q25WK1
036599
Y7-36599
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller Selector switch, 2 positions, white, momentary (part Q25WK1) is a panel-mounted manual actuator utilized to direct control signals in industrial machinery and electrical switchgear. Engineers typically integrate selector switches into control consoles to enable quick, operator-initiated configuration changes in automated processes.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): White
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
CSA-C22.2 No. 14-05
IEC/EN 60947
UL
CSA
CSA File No.: 46552
UL 508
IEC/EN 60947-5
UL Category Control No.: NKCR
CSA Class No.: 3211-03
UL File No.: E29184
Features & Functions
VS anti-rotation tab
General
2.8 x 0.8 mm to DIN 46244, Blade terminal
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Momentary
