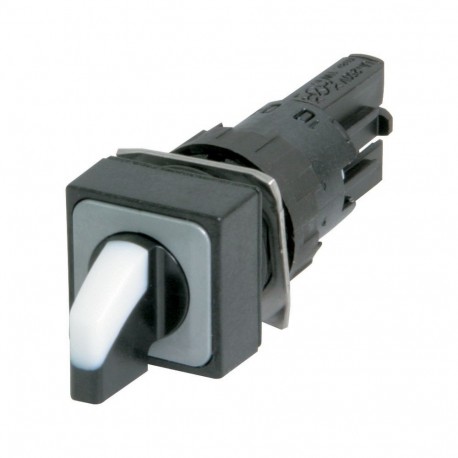

Q18WK1 036515 Y7-36515 EATON ELECTRIC Selector switch, 2 positions, white, momentary
Q18WK1
036515
Y7-36515
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller selector switch functions as a panel-mounted rotary control element that directs electrical signals and switches operational modes within automated manufacturing equipment. Operators use the toggle configuration to manage machine cycles and circuit states.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): White
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
CSA-C22.2 No. 14-05
IEC/EN 60947-5
CE
CSA
IEC/EN 60947
UL 508
CSA File No.: 46552
UL
UL File No.: E29184
UL Category Control No.: NKCR
Features & Functions
VS anti-rotation tab
General
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Spring-return
