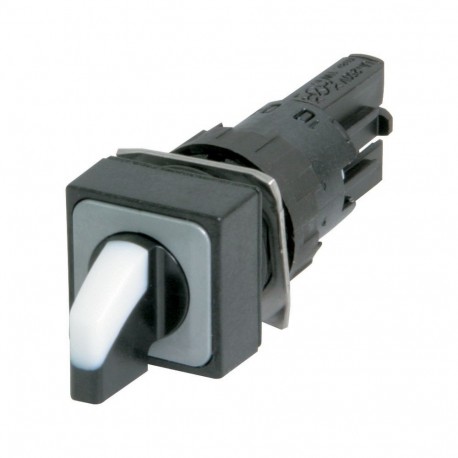

Q18WK1R 036598 Y7-36598 EATON ELECTRIC Selector switch, 2 positions, white, maintained
Q18WK1R
036598
Y7-36598
EATON - MOELLER
10 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A standard selector switch is an essential operator device used across industrial machinery to manually alternate between binary control states or processing routines. This Eaton Moeller Q18WK1R unit features a compact plastic construction suited for space-constrained control consoles.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Toggle
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): White
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
UL 508
CSA File No.: 46552
IEC/EN 60947-5
CSA-C22.2 No. 14-05
UL
UL Category Control No.: NKCR
CSA
UL File No.: E29184
CE
IEC/EN 60947
Features & Functions
VS anti-rotation tab
General
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Actuator
Switching function latching
