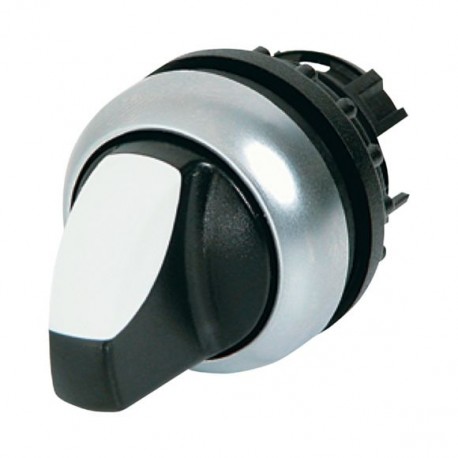

EATON - MOELLER M22-WLKV-W M22-WLKV-W 284393 Y7-284393 EATON ELECTRIC Selector switch, 2 positions, illuminated, white View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WLKV-W 284393 Y7-284393 EATON ELECTRIC Selector switch, 2 positions, illuminated, white

M22-WLKV-W

284393

Y7-284393

EATON - MOELLER

5 Pcs.

Selector switch, 2 positions, illuminated, white M22-WLKV-W Eaton Moeller® series M22 Illuminated selector switch actuator, RMQ-Titan, With thumb-grip, maintained, 2 positions (V position), White, Bezel: titanium Illuminated selector switch actuator, Product range: RMQ-Titan, Single unit, Design: With thumb-grip, maintained, 2 positions (V position), Color Thumb-grip: White, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An illuminated Eaton Moeller selector switch provides operators with a visual status indicator and a manual switching mechanism for controlling machine routines and electrical pathways.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Toggle
  • Suitable for lighting (EF001142): Yes
  • Colour control element (EF007167): Black
  • Colour indicator light cap (EF007165): White
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated selector switch actuator
Catalog Number
284393
Model Code
M22-WLKV-W
EAN
4015082843939
Product Length/Depth
46 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.014 kg
Certifications
CSA-C22.2 No. 94-91
UL
CSA File No.: 012528
CE
IEC/EN 60947-5
UL Category Control No.: NKCR
CSA
CSA Class No.: 3211-03
UL 508
VDE 0660
CSA-C22.2 No. 14-05
IEC/EN 60947
UL File No.: E29184
DNV
GL
LR
