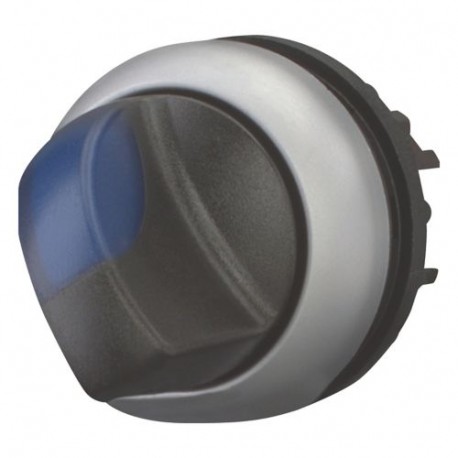

EATON - MOELLER M22-WLKV-B M22-WLKV-B 284397 Y7-284397 EATON ELECTRIC Selector switch, 2 positions, illuminated, blue View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WLKV-B 284397 Y7-284397 EATON ELECTRIC Selector switch, 2 positions, illuminated, blue

M22-WLKV-B

284397

Y7-284397

EATON - MOELLER

5 Pcs.

Selector switch, 2 positions, illuminated, blue M22-WLKV-B Eaton Moeller® series M22 Illuminated selector switch actuator, RMQ-Titan, With thumb-grip, maintained, 2 positions (V position), Blue, Bezel: titanium Illuminated selector switch actuator, Product range: RMQ-Titan, Single unit, Design: With thumb-grip, maintained, 2 positions (V position), Color Thumb-grip: Blue, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An illuminated Eaton Moeller selector switch allows machine operators to toggle between operating states while supplying clear visual status indication on control panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Toggle
  • Suitable for lighting (EF001142): Yes
  • Colour control element (EF007167): Black
  • Colour indicator light cap (EF007165): Blue
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated selector switch actuator
Catalog Number
284397
Model Code
M22-WLKV-B
EAN
4015082843977
Product Length/Depth
46 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.014 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
IEC 60947-5
UL 508
EN 60947-5
VDE
IEC/EN 60947-5
CSA-C22.2 No. 94-91
IEC/EN 60947
UL File No.: E29184
CSA Class No.: 3211-03
VDE 0660
CSA
CSA-C22.2 No. 14-05
UL
UL Category Control No.: NKCR
CE
CSA File No.: 012528
