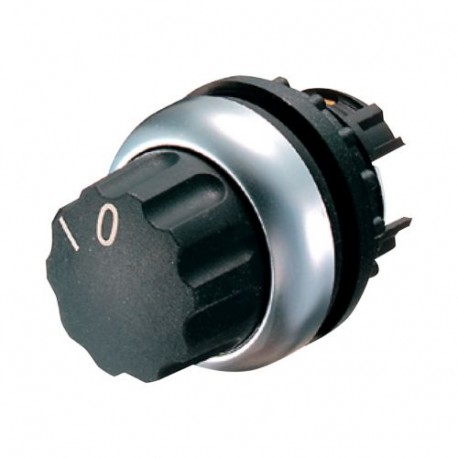

EATON - MOELLER M22-W M22-W 216853 Y7-216853 EATON ELECTRIC Selector switch, 2 positions, black 0 I, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-W 216853 Y7-216853 EATON ELECTRIC Selector switch, 2 positions, black 0 I, momentary

M22-W

216853

Y7-216853

EATON - MOELLER

5 Pcs.

Selector switch, 2 positions, black 0 I, momentary M22-W Eaton Moeller® series M22 Changeover switch, RMQ-Titan, With rotary head, momentary, 2 positions, inscribed, Bezel: titanium Changeover switch, Product range: RMQ-Titan, Single unit, Design: With rotary head, momentary, 2 positions, inscribed, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part M22-W is a compact selector switch actuator designed for standard industrial control panels and machine consoles. Engineers integrate these control devices to route signals, switch operating modes, and manage sequential logic within automated systems.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Rotating button
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Changeover switch
Catalog Number
216853
Model Code
M22-W
EAN
4015082168537
Product Length/Depth
43 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Compliances
CE Marked
Certifications
UL 508
CSA Std. C22.2 No. 14-05
EN 60947-5
CSA Std. C22.2 No. 94-91
IEC 60947-5
VDE
VDE 0660
CE
IEC/EN 60947
CSA
CSA-C22.2 No. 14-05
IEC/EN 60947-5
UL
UL File No.: E29184
CSA Class No.: 3211-03
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
CSA File No.: 012528

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
