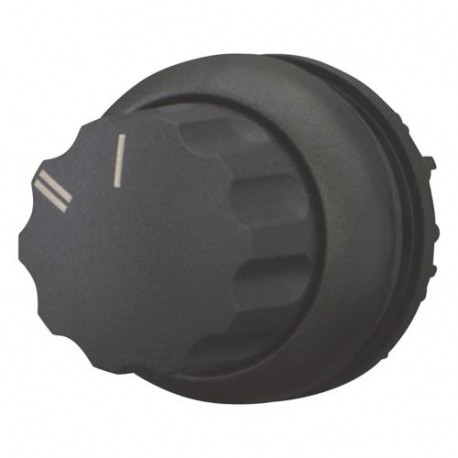

EATON - MOELLER M22S-WR-X92 M22S-WR-X92 216858 Y7-216858 EATON ELECTRIC Selector switch, 2 positions, AUTO HAND, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-WR-X92 216858 Y7-216858 EATON ELECTRIC Selector switch, 2 positions, AUTO HAND, maintained

M22S-WR-X92

216858

Y7-216858

EATON - MOELLER

1 Pcs.

Selector switch, 2 positions, AUTO HAND, maintained M22S-WR-X92 Eaton Moeller® series M22 Changeover switch, RMQ-Titan, With rotary head, maintained, 2 positions, inscribed, Bezel: black, II I Changeover switch, Product range: RMQ-Titan, Single unit, Design: With rotary head, maintained, 2 positions, inscribed, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number M22S-WR-X92 is a two-position selector switch actuator marked for standard auto-hand control configurations. Industrial control systems rely on these switches to transition between automated process cycles and manual intervention modes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Rotating button
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Changeover switch
Catalog Number
216858
Model Code
M22S-WR-X92
EAN
4015082168582
Product Length/Depth
43 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
CSA
CSA File No.: 012528
IEC/EN 60947
UL 508
UL File No.: E29184
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
UL
UL Category Control No.: NKCR
VDE 0660
CE
IEC/EN 60947-5
DNV
GL
LR
