View larger
Images are for illustrative purposes only. Please refer to data sheet for details

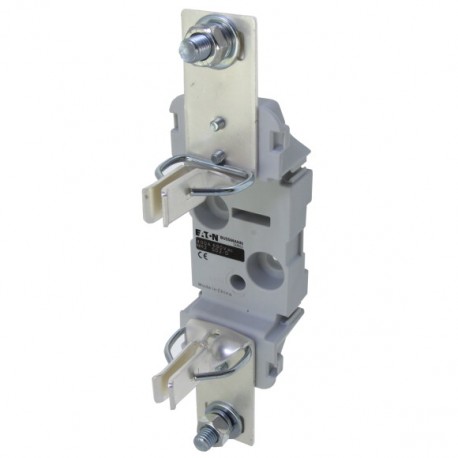

SD2-DD EATON ELECTRIC Fuse-base, LV, 400 A, AC 690 V, NH2, 1P, IEC, double clip, DIN rail mount, screw mount
SD2-DD
SD2DD
EATON - MOELLER
3 Pcs.
NH2 SINGLE POLE SILVER DOUBLE CLIP
NH2 SINGLE POLE SILVER DOUBLE CLIP - Fuse base, low voltage, 400 A, AC 690 V, NH2, 1P, IEC, double clip, DIN rail mounting
Automation > Low Voltage HRC fuse base
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Fuse base, low voltage, 400 A, AC 690 V, NH2, 1P, IEC, double clip, DIN rail mounting
Fuse accessory, fuse-base, low voltage, 400 A, AC 690 V, NH2, 1P, IEC, double clip, DIN rail mounting, screw mounting, IEC 60269-1, with thermoplastic body. Optional accessories: clip-in phase barriers, terminal shrouds, fuse covers, microswitch, IP20 fingersafe protection kits, neutral links, phase barriers
Delivery program
Product range
Fuse accessory
Basic function
Fuse-base
Field of application
low voltage
Rated current [I]
400 A
Rated voltage
AC 690 V
Construction size
NH2
Description
double clip
DIN rail mounting
screw mounting
DIN rail mounting
screw mounting
Number of poles
1P
Standard/Approval
IEC
Material
Thermoplastic body
Standards/Regulations
IEC 60269-1
Optional accessories
clip-in phase barriers
terminal shrouds
fuse-covers
microswitch
IP20 finger-safe protection kits
neutral links
phase barriers
terminal shrouds
fuse-covers
microswitch
IP20 finger-safe protection kits
neutral links
phase barriers
Technical data ETIM 7.0
Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse base (EC000067)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Low-Voltage HRC fuse base ([email protected] [AKE278013])
Construction size
NH2
Number of poles
1
Rated current
400 A
Bus-mounting type
Yes
Swivelling mechanism
Yes
