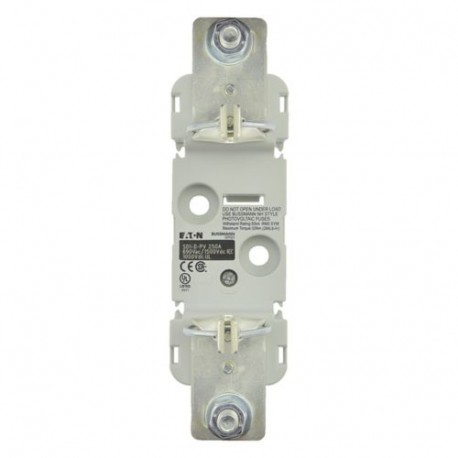

EATON - MOELLER SD1-D-PV SD1-D-PV EATON ELECTRIC Base of fuse, ultra rapid, 250 a, AC 690 V, NH1, 1F, IEC, UL, CSA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SD1-D-PV EATON ELECTRIC Base of fuse, ultra rapid, 250 a, AC 690 V, NH1, 1F, IEC, UL, CSA

SD1-D-PV

SD1DPV

EATON - MOELLER

3 Pcs.

NH1 SINGLE POLE SILVER 1/4 SCREW PV Eaton Bussmann series NH PV fuse block, 1500 Vdc, 250A

Automation > Low Voltage HRC fuse base
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Optimized for photovoltaic applications, the Eaton Moeller SD1-D-PV base of fuse securely anchors specialized solar protection links in high-voltage DC circuits. Renewable energy developers utilize specialized photovoltaic blocks to ensure safe operation across extensive solar installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: SD1-D-PV
  • Catalogue code: SD1DPV
  • Catalogue title: SD1-D-PV EATON ELECTRIC Base of fuse, ultra rapid, 250 a, AC 690 V, NH1, 1F, IEC, UL, CSA

More info

▲

General specifications

Product Name
Eaton Bussmann series SD photovoltaic fuse block
Catalog Number
SD1-D-PV
Model Code
NH1 SINGLE POLE SILVER 1/4 SCREW PV
EAN
5027590434386
UPC
051712387927
Product Length/Depth
56 mm
Product Height
199 mm
Product Width
78.9 mm
Product Weight
319.667 g
Compliances
Contact factory

Product specifications

Amperage Rating
250 A
Voltage rating
1500 Vdc

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
