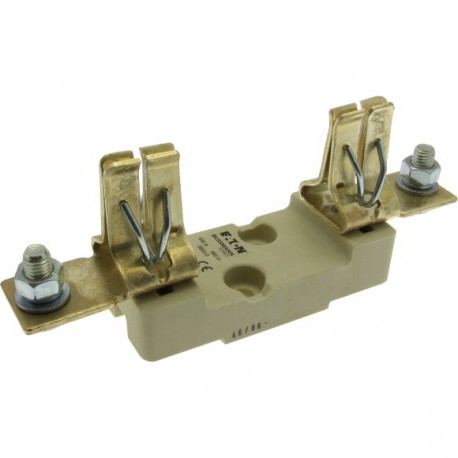

EATON - MOELLER SBS3-D SBS3-D CERAMIC BASE NH3 UNIPOLAR CR 630A EATON ELECTRIC Fuse-base, low voltage, 630 A, AC 690 V, NH3, 1P, IEC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SBS3-D CERAMIC BASE NH3 UNIPOLAR CR 630A EATON ELECTRIC Fuse-base, low voltage, 630 A, AC 690 V, NH3, 1P, IEC

SBS3-D

SBS3D

CERAMIC BASE NH3 UNIPOLAR CR 630A

EATON - MOELLER

3 Pcs.

Fuse-base, low voltage, 630 A, AC 690 V, NH3, 1P, IEC CERAMIC BASE NH3 UNIPOLAR CR 630A Fuse accessory, Fuse-base, low voltage, 630 A, AC 690 V, NH3, 1P, IEC, Breaking Capacity, Ceramic, Optional accessories, Supplied with

Automation > Low Voltage HRC fuse base
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The SBS3-D CERAMIC BASE NH3 UNIPOLAR CR 630A EATON ELECTRIC Fuse-base, low voltage, 630 A, AC 690 V, NH3, 1P, IEC is a robust industrial fuse base utilized for mounting high-capacity knife-blade fuses in main distribution panels. It provides a secure mechanical platform and reliable terminal connections for safely interrupting major fault currents in heavy electrical installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction size (EF002566): NH3
  • Mounting method (EF000003): Screw-on
  • Number of poles (EF001391): 1
  • Rated current (EF000227): 630 A
  • Bus-mounting type (EF002573): No
  • Swivelling mechanism (EF002574): No
  • With extra contact (EF020645): No
  • Halogen free (EF000025): No

More info

▲
Fuse-base, low voltage, 630 A, AC 690 V, NH3, 1P, IEC
Fuse accessory, Fuse-base, low voltage, 630 A, AC 690 V, NH3, 1P, IEC, Breaking Capacity, Ceramic

Delivery program

Product range
Fuse accessory
Basic function
Fuse-base
Field of application
low voltage
Rated current [I]
630 A
Rated voltage
AC 690 V
Construction size
NH3
Number of poles
1P
Standard/Approval
IEC
Material
Ceramic

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse base (EC000067)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Low-Voltage HRC fuse base ([email protected] [AKE278013])
Construction size
NH3
Number of poles
1
Rated current
630 A
Bus-mounting type
No
Swivelling mechanism
No
