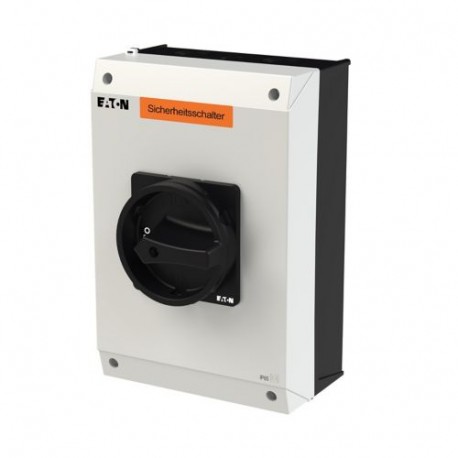

EATON - MOELLER P3-63/I4-SI/N-SW P3-63/I4-SI/N-SW 207366 Y7-207366 EATON ELECTRIC safety switch, 3p+N, 63 A, Emergency stop function, Lockabl.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-63/I4-SI/N-SW 207366 Y7-207366 EATON ELECTRIC safety switch, 3p+N, 63 A, Emergency stop function, Lockabl..

P3-63/I4-SI/N-SW

207366

Y7-207366

EATON - MOELLER

1 Pcs.

safety switch, 3p+N, 63 A, Emergency stop function, Lockable in position 0 with cover interlock, surface mounting, with warning label „safety switch” P3-63/I4-SI/N-SW Eaton Moeller® series P3 Safety switch, P3, 63 A, 3 pole + N, STOP function, With black rotary handle and locking ring, Lockable in position 0 with cover interlock, with warning label „safety switch” Safety switch, Product range: safety switch, Part group reference: P3, Stop Function: STOP function, With black rotary handle and locking ring, Notes: with warning label „safety switch”, Information about equipment supplied: auxiliary contact fitted by user., 3 pole + N, Locking facility: Lockable in position 0 with cover interlock, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The P3-63/I4-SI/N-SW 207366 EATON ELECTRIC safety switch is an enclosed multi-pole control device designed for machinery protection. Safety switches and interlocked disconnectors ensure compliant electrical isolation to prevent accidental machine startups during servicing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): Yes
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.26 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 Accessory Insulated enclosure
Catalog Number
207366
Model Code
P3-63/I4-SI/N-SW
EAN
4015082073664
Product Length/Depth
139 mm
Product Height
180 mm
Product Width
160 mm
Product Weight
1.072 kg
Certifications
EN 60947
EN 60204
IEC 60947
VDE
IEC/EN 60947-3
IEC/EN 60204
IEC/EN 60947
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
