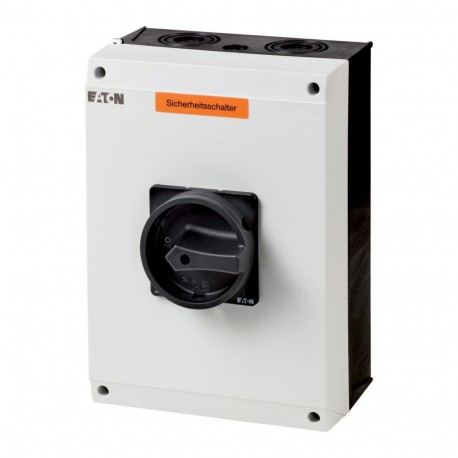

EATON - MOELLER P3-100/I5-SI/N-SW P3-100/I5-SI/N-SW 207391 Y7-207391 EATON ELECTRIC safety switch, 3p + N, 100 A,Emergency stop function,Locka.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-100/I5-SI/N-SW 207391 Y7-207391 EATON ELECTRIC safety switch, 3p + N, 100 A,Emergency stop function,Locka..

P3-100/I5-SI/N-SW

207391

Y7-207391

EATON - MOELLER

1 Pcs.

safety switch, 3p + N, 100 A,Emergency stop function,Lockable in position 0 with cover interlock, surface mounting, with warning label „safety switch” P3-100/I5-SI/N-SW Eaton Moeller® series P3 Safety switch, P3, 100 A, 3 pole + N, STOP function, With black rotary handle and locking ring, Lockable in position 0 with cover interlock, with warning label „safety switch” Safety switch, Product range: safety switch, Part group reference: P3, Stop Function: STOP function, With black rotary handle and locking ring, Notes: with warning label „safety switch”, Information about equipment supplied: auxiliary contact fitted by user., 3 pole + N, Locking facility: Lockable in position 0 with cover interlock, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A safety switch built by Eaton Moeller, part P3-100/I5-SI/N-SW 207391 Y7-207391, is commonly installed in industrial power distribution networks to reliably isolate circuits during maintenance or emergency interventions. These devices protect operators and equipment by interrupting electrical loads securely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): Yes
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 37 kW
  • Rated short-time withstand current lcw (EF007050): 2 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 Accessory Insulated enclosure
Catalog Number
207391
Model Code
P3-100/I5-SI/N-SW
EAN
4015082073916
Product Length/Depth
169 mm
Product Height
280 mm
Product Width
200 mm
Product Weight
1.49 kg
Certifications
IEC/EN 60947-3
IEC/EN 60947
VDE 0660
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
