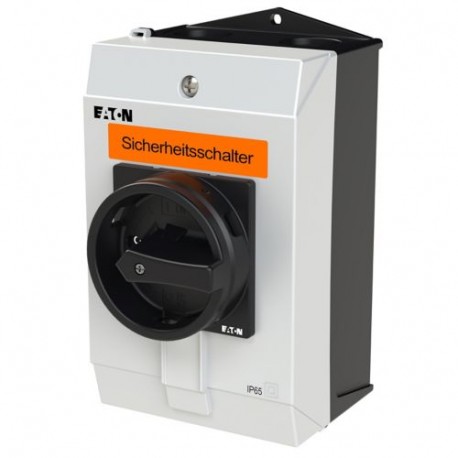

EATON - MOELLER P1-25/I2-SI/HI11-SW P1-25/I2-SI/HI11-SW 207311 Y7-207311 EATON ELECTRIC safety switch,3p+1 N/O+1 N/C,25 A,Emergency stop functio.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/I2-SI/HI11-SW 207311 Y7-207311 EATON ELECTRIC safety switch,3p+1 N/O+1 N/C,25 A,Emergency stop functio..

P1-25/I2-SI/HI11-SW

207311

Y7-207311

EATON - MOELLER

1 Pcs.

safety switch,3p+1 N/O+1 N/C,25 A,Emergency stop function,Lockable in position 0 with cover interlock,surface mount.,w. warning label „safety switch” P1-25/I2-SI/HI11-SW Eaton Moeller® series P1 Safety switch, P1, 25 A, 3 pole, 1 N/O, 1 N/C, STOP function, With black rotary handle and locking ring, Lockable in position 0 with cover interlock, with warning label „safety switch” Safety switch, Product range: safety switch, Part group reference: P1, Stop Function: STOP function, With black rotary handle and locking ring, Notes: with warning label „safety switch”, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Locking facility: Lockable in position 0 with cover interlock, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 11 kW, Rated uninterrupted current: Iu = 25 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller P1-25/I2-SI/HI11-SW safety switch is engineered to interrupt electrical circuits under load conditions while fulfilling mandatory safety interlocking requirements. Such switches are typically deployed near heavy equipment to ensure technicians can securely isolate machine power before performing mechanical interventions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): Yes
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 25 A
  • Rated permanent current at AC-23, 400 V (EF011777): 25 A
  • Rated permanent current at AC-21, 400 V (EF009165): 25 A
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 13 kW
  • Switching power at 400 V (EF009166): 13 kW
  • Conditioned rated short-circuit current Iq (EF001444): 50 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Safety switch
Catalog Number
207311
Model Code
P1-25/I2-SI/HI11-SW
EAN
4015082073114
Product Length/Depth
125 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.47 kg
Certifications
VDE 0660
IEC/EN 60204
IEC/EN 60947-3
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
