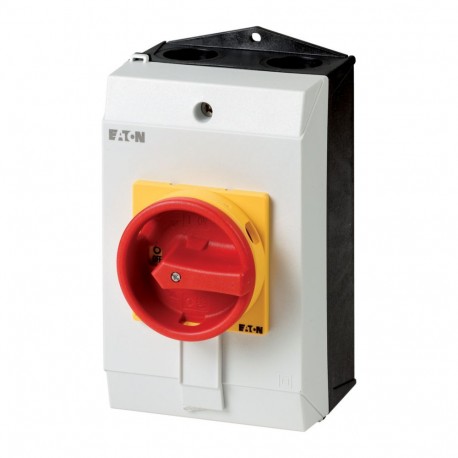

EATON - MOELLER P1-32/I2-SI P1-32/I2-SI 207329 Y7-207329 EATON ELECTRIC safety switch, 3p, 32 A, Emergency-Stop function, Lockable in po.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/I2-SI 207329 Y7-207329 EATON ELECTRIC safety switch, 3p, 32 A, Emergency-Stop function, Lockable in po..

P1-32/I2-SI

207329

Y7-207329

EATON - MOELLER

1 Pcs.

safety switch, 3p, 32 A, Emergency-Stop function, Lockable in position 0 with cover interlock, surface mounting, with warning label „safety switch” P1-32/I2-SI Eaton Moeller® series P1 Safety switch, P1, 32 A, 3 pole, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in position 0 with cover interlock, with warning label „safety switch” Safety switch, Product range: safety switch, Part group reference: P1, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: with warning label „safety switch”, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Locking facility: Lockable in position 0 with cover interlock, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller component P1-32/I2-SI functions as a safety switch equipped with an emergency-stop capability for safeguarding industrial machinery operators. These enclosed switches are mounted locally near equipment to enable immediate power interruption during hazardous events. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): Yes
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 13 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 Safety switch
Catalog Number
207329
Model Code
P1-32/I2-SI
EAN
4015082073299
Product Length/Depth
125 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.422 kg
Certifications
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
