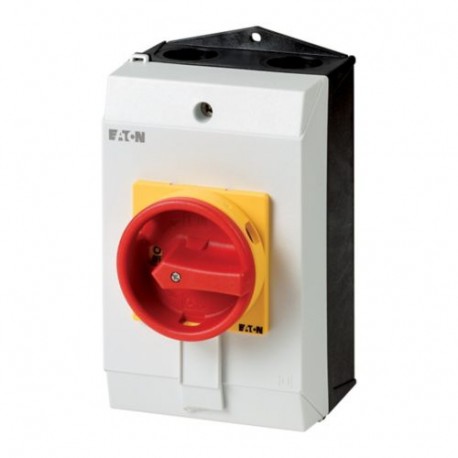

P1-25/I2-SI 207308 Y7-207308 EATON ELECTRIC safety switch, 3p, 25 A, Emergency-Stop function, Lockable in po..
P1-25/I2-SI
207308
Y7-207308
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The P1-25/I2-SI Eaton Moeller safety switch operates as a dependable enclosure-housed disconnect unit engineered for rapid emergency stopping in automated environments. Facility managers install these lockable devices to safeguard technicians working on live industrial production equipment.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): Yes
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 25 A
- Rated permanent current at AC-23, 400 V (EF011777): 25 A
- Rated permanent current at AC-21, 400 V (EF009165): 25 A
- Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
- Rated short-time withstand current lcw (EF007050): 0.64 kA
- Rated operation power at AC-23, 400 V (EF007027): 13 kW
- Switching power at 400 V (EF009166): 13 kW
- Conditioned rated short-circuit current Iq (EF001444): 80 kA
More info
▲General specifications
IEC 60947
EN 60947
VDE
IEC/EN 60204
IEC/EN 60947-3
VDE 0660
IEC/EN 60947
