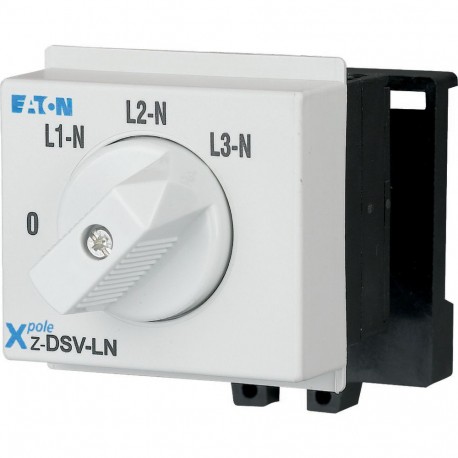

Rotary switches, L-N voltmeter, L1 - N... Z-DSV-LN The rotary switches in the Z-DS series feature a modular design: the switch itself is made up of the corresponding detent mechanism and a switch package. The cams (which is why the switches are also referred to as zcam switchesz) are driven by a sturdy, torsionally rigid aluminum shaft. The switch package is made up of one or more switch cells with one or two double-break contacts that are independent of each other. The connections between adjacent switch terminals, such as the one required for the Z-DSV voltmeter changeover switch, are incorporated into the switch molding . This ensures that there will be no obstacles when connecting the terminal leads. Applications: can be practically used for any application. For example, motor switch: garage doors, ventilator, motorized roller shutte

Automation > Main switch for distribution board
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Rotary switches, L-N voltmeter, L1 - N...
The rotary switches in the Z-DS series feature a modular design: the switch itself is made up of the corresponding detent mechanism and a switch package. The cams (which is why the switches are also referred to as "cam switches") are driven by a sturdy, torsionally rigid aluminum shaft. The switch package is made up of one or more switch cells with one or two double-break contacts that are independent of each other. The connections between adjacent switch terminals, such as the one required for the Z-DSV voltmeter changeover switch, are incorporated into the switch molding. This ensures that there will be no obstacles when connecting the terminal leads. Applications: can be practically used for any application. For example, motor switch: garage doors, ventilator, motorized roller shutters, heating controls, light fixtures, instrument switch, various control purposes, etc. Type conform to IEC 60947-3, IEC 60947-5-1, VDE 0660, EN 60947-3, SEV

Design verification as per IEC/EN 61439

Rated operational current for specified heat dissipation [In]
20 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
2 W
Static heat dissipation, non-current-dependent [Pvs]
0 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-40 °C
Operating ambient temperature max.
+60 °C
0

Technical data ETIM 7.0

Devices for distribution board-/surface mounting (EG000062) / Main switch for distribution board (EC001545)
Electric engineering, automation, process control engineering / Electrical installation, device / Modular serial built-in device for electrical circuit distributors / Main switch for distribution board ([email protected] [AFZ813014])
Switching function
Other
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
1
Number of poles
0
Rated current
20 A
Rated voltage
690 V
Min. rated voltage
440 V
Rated switching capacity
0 kA
Short-circuit breaking capacity (Icw)
10 kA
Voltage type
AC
Forced segregation (according to DIN VDE 0113)
No
With signal lamp
No
Colour calotte
Other
Lamp type
Other
Lamp socket
Other
Max. lamp power
0 W
Width in number of modular spacings
3
Built-in depth
60 mm
Degree of protection (IP)
IP20

ETIM for 248878 Modular devices for distribution board/surface mounting (EC001545)
Feature Name Feature Value
Switching function (EF000189) Other
Number of contacts as normally open contact (EF008256) 0
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as change-over contact (EF008257) 1
Number of poles (EF001391) 1
Rated current (EF000227) 20 A
Rated voltage (EF000228) 690 V
Min. rated voltage (EF005025) 440 V
Rated switching capacity (EF002563) 0.02 kA
Short-circuit breaking capacity (Icw) (EF002562) 10 kA
Voltage type (EF000187) AC
With signal lamp (EF000198) No
Colour calotte (EF004668) Other
Lamp type (EF002423) Other
Lamp socket (EF004870) Other
Max. lamp power (EF000260) 0 W
Width in number of modular spacings (EF002950) 3
Built-in depth (EF000218) 60 mm
Degree of protection (IP) (EF005474) IP20
Imprint/indication (EF003823) Other
Forced segregation according to DIN VDE 0113 (EFDE0032) No

Product Datasheet
