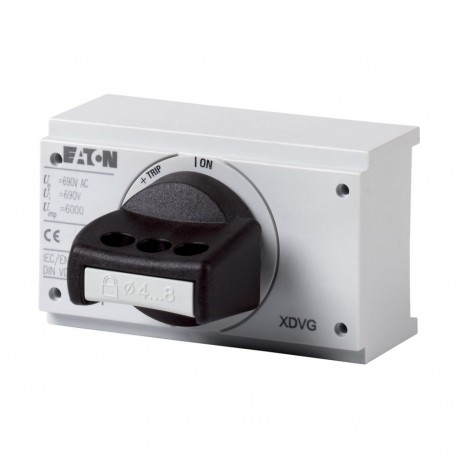

EATON - MOELLER NZM1-XDVG NZM1-XDVG 285247 Y7-285247 EATON ELECTRIC Rotary handle, toggle, black, lockable, size 1 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NZM1-XDVG 285247 Y7-285247 EATON ELECTRIC Rotary handle, toggle, black, lockable, size 1

NZM1-XDVG

285247

Y7-285247

EATON - MOELLER

1 Pcs.

Rotary handle, toggle, black, lockable, size 1 NZM1-XDVG Eaton Moeller series NZM - Molded Case Circuit Breaker. Rotary handle, toggle, black, lockable, size 1 Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: complete with rotary drive, can be combined with insulating surround, MODAN handle position detection by wire release can be retrofitted. Default, black/grey. Lockable on the 0 position on the handle using up to 3 padlocks. Can be used for: NZM1(-4), PN1(-4), N(N/O)1(-4)

Automation > Handle for power circuit breaker
Circuit Breakers NZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller series NZM - Molded case circuit breaker
Catalog Number
285247
Model Code
NZM1-XDVG
EAN
4015082852474
Product Length/Depth
80 mm
Product Height
54 mm
Product Width
90 mm
Product Weight
0.162 kg
Compliances
UL/CSA
IEC
RoHS conform

Product specifications

Type
AccessoryRotary handle on circuit-breaker
Special features
Complete with rotary driveCan be combined with insulating surroundMODAN handle position detection by wire release can be retrofittedMakes it possible to operate the switch with a rotational movement and provides locking facilities
Features
Standard: black / gray
Lockable
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Color
Black
Fitted with:
Padlock
Frame
NZM1
Used with
NZM1(-4), PN1(-4), N(S)1(-4)
Activation type
Rotary handle
Suitable for
Power circuit breaker
Switch disconnector
Locking facility
Lockable on the 0 position on the handle using up to 3 padlocks
Degree of protection / NEMA enclosure type
IP20
4X. 12

ETIM for 285247 Low-voltage industrial controls and switchgear (EC000229)
Feature Name Feature Value
With restart blockage (EF004054) No
With key lock (EF026057) No
Padlock locking (EF001163) Yes
Colour (EF000007) Black
Suitable for emergency stop (EF001433) No
With extension shaft (EF001434) No
Suitable for power circuit breaker (EF005863) Yes
Suitable for switch disconnector (EF007252) Yes
Degree of protection (NEMA) (EF011959) 4X, 12
